Section 12 - Smokebox

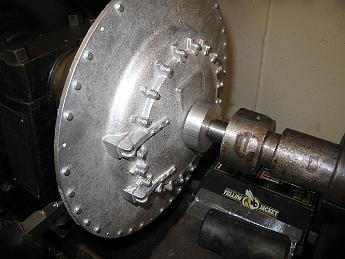

The 'face' of a locomotive. Smokebox front, smokestack, headlight bracket, hinges, bell. February - June 2009.

Previous page At last page 193-211 (of 211 found)

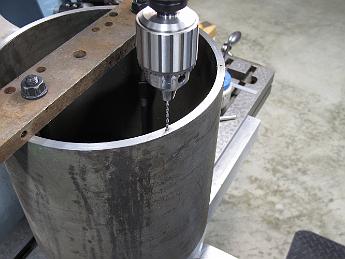

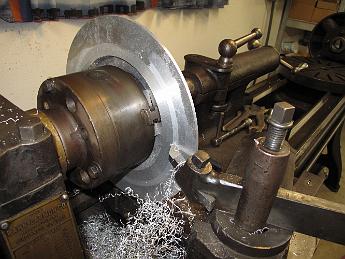

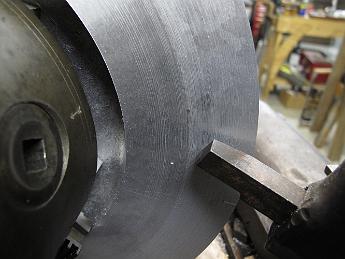

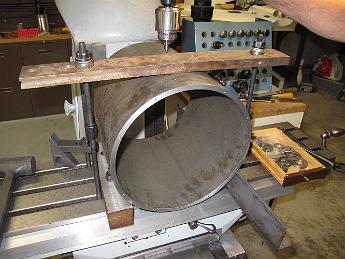

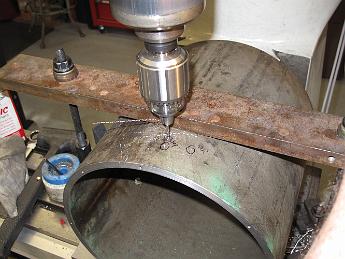

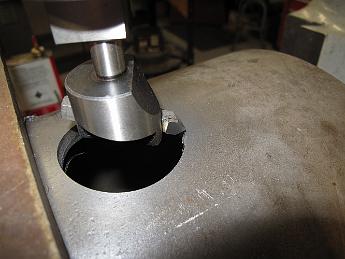

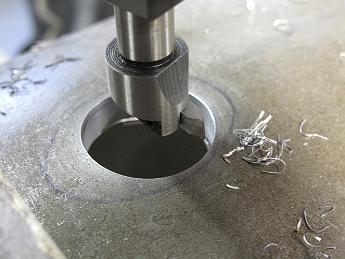

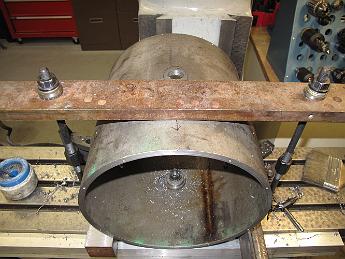

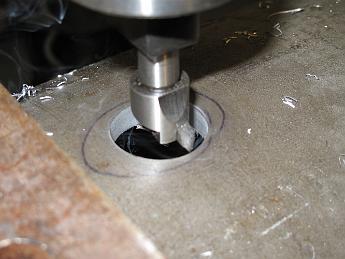

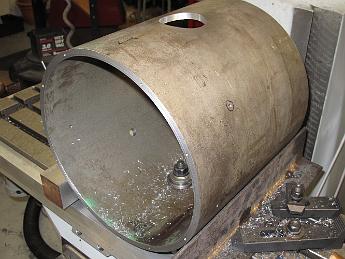

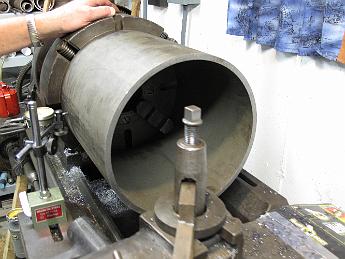

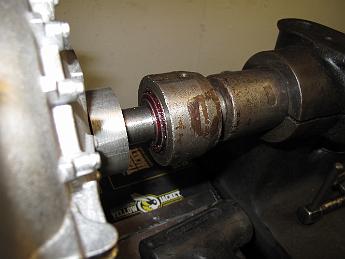

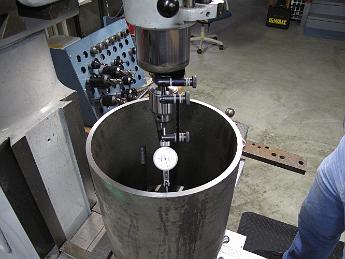

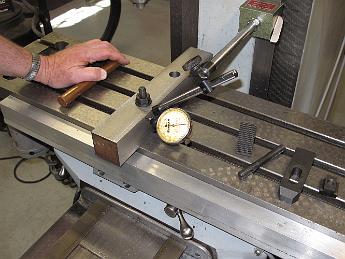

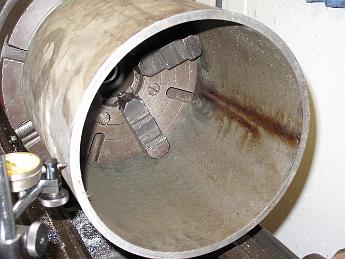

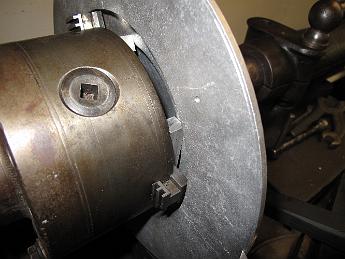

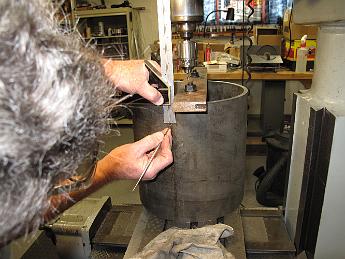

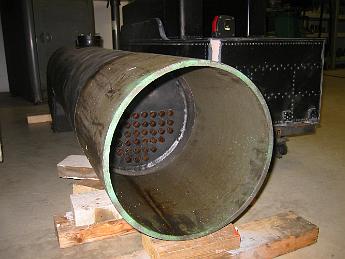

DrillingSmokeboxShell21Feb09 007 Another good days work! The smokebox shell has the smokestack, blast pipe, steam pipes, handrail and boiler step holes in it. DrillingSmokeboxShell21Feb09 006 When we advance to the next larger cutter, we have to look around to find a carbide cutter to put in it. We can run carbide twice a fast and take a heavier cut each time, speeding each boring pass up considerably. Unfortunately, this cutter which looked like it had enough clearance, did not perform well in this setup at all, producing lots of chatter and a lousy finish. We have to switch back to a HSS bit. DrillingSmokeboxShell21Feb09 005 The high speed steel cutters are okay, but slow. We can't take very large cuts - about 0.010 each pass. DrillingSmokeboxShell21Feb09 004 Having quickly reached the size limit of the boring head with boring bars, we start a progression of larger fly cutters mounted in the boring head to enlarge the hole to the 2 DrillingSmokeboxShell21Feb09 009 All the holes (not counting rivets) are done except for the smokestack hole. We add a center bolt in the blast pipe hole to help secure the pipe and start a series of larger holes for the smokestack. DrillingSmokeboxShell21Feb09 008 After a hole is drilled, we loosen the top bridging clamp, roll the pipe and line up to the next scribe mark. Here we are drilling the holes for the side step. DrillingSmokeboxShell21Feb09 003 With a 4 DrillingSmokeboxShell21Feb09 002 Next to make a clamping fixture. My mill table is way too small to clamp over the shell by resting it in a slot, and I probably couldn't lift a vee-block large enough for the 12 DrillingSmokeboxShell21Feb09 001 21-Feb-09 It's lousy weather outside today, nothing can be done at the track so into the shop we go. Using the same DRO bolt circle program, we have made marks on the rim of the shell for the steam pipe, handrails, and smokestack holes to go on the side of the shell. Using the rim marks and the combination square, the hole locations are marked on the side. TurningSmokeboxShell11Feb09 010 A bit of figuring with the DRO bolt circle program and soon we are drilling and tapping the 5-40 holes for the smokebox cover. TurningSmokeboxShell11Feb09 009 With the Bridgeport knee all the way to the bottom and the ram pulled out a bit more, we do our best to center the pipe in the mill. We discover the pipe is not completely round by about 15 thou. Not a problem since the boiler is almost 1/8 TurningSmokeboxShell11Feb09 003 Finishing the centering operation with the dial indicator. Next we clamp down a nice sharp piece of high speed steel in the lantern style tool post and face the end of the pipe. TurningSmokeboxShell11Feb09 001 11-Feb-09 This old Rahn-Larmon lathe still has the factory issued 14 SmokeboxStarted4Feb09 006 The cutting was going well until we hit a piece of sand or a stone in the aluminum which destroys the edge of the HSS cutter. You can see the defect in the middle of the casting - the small black dot in the middle. You can also see the smooth finish on the left and the rough finish on the right which was after the cutter edge was ruined. We try switching to a tougher carbide bit, but it does not have enough relief clearance and the bottom edge drags on the metal, cutting poorly. We end up digging the stone out with a pointed chisel which allows us to finish the work with the resharpened HSS cutter. SmokeboxStarted4Feb09 004 Running in open belt, about 258 rpm, we take light cuts from the inside working out with a nice sharp high-speed tool bit. SmokeboxStarted4Feb09 003 Here's how we chose to hold the smokebox front: Using a 6 SmokeboxStarted4Feb09 002 Our 'live center' is a shop made affair of many years ago using an open cage tapered roller bearing. I had to dunk it in the solvent tank to clean out the gunk and dirt, then greased it up a bit. The inner race is not captive so if you back the tailstock off, the bearing will fall out, which also gets it dirty again. It needs to have a proper live center made. You can spend your time making tooling or making parts, this time it was parts. SmokeboxStarted4Feb09 001 4-Feb-09 We start a new section - the Smokebox! It's always fun to start a new one--fresh drawings to look at, new castings to puzzle out how to hold. We put the big Rahn-Larmon lathe to use to turn the OD of the smokebox front true, and clean up the back. Although we have the casting clamped from behind, we use the live center and a spacer block for additional pressure to keep it in place. SmokeboxReceived9Feb08 002 9-Feb-08 Thanks to my friend Tim M., who is also building a Mikado and having a boiler built, I was able to get a cut of the boiler pipe for my smokebox. It is 12
