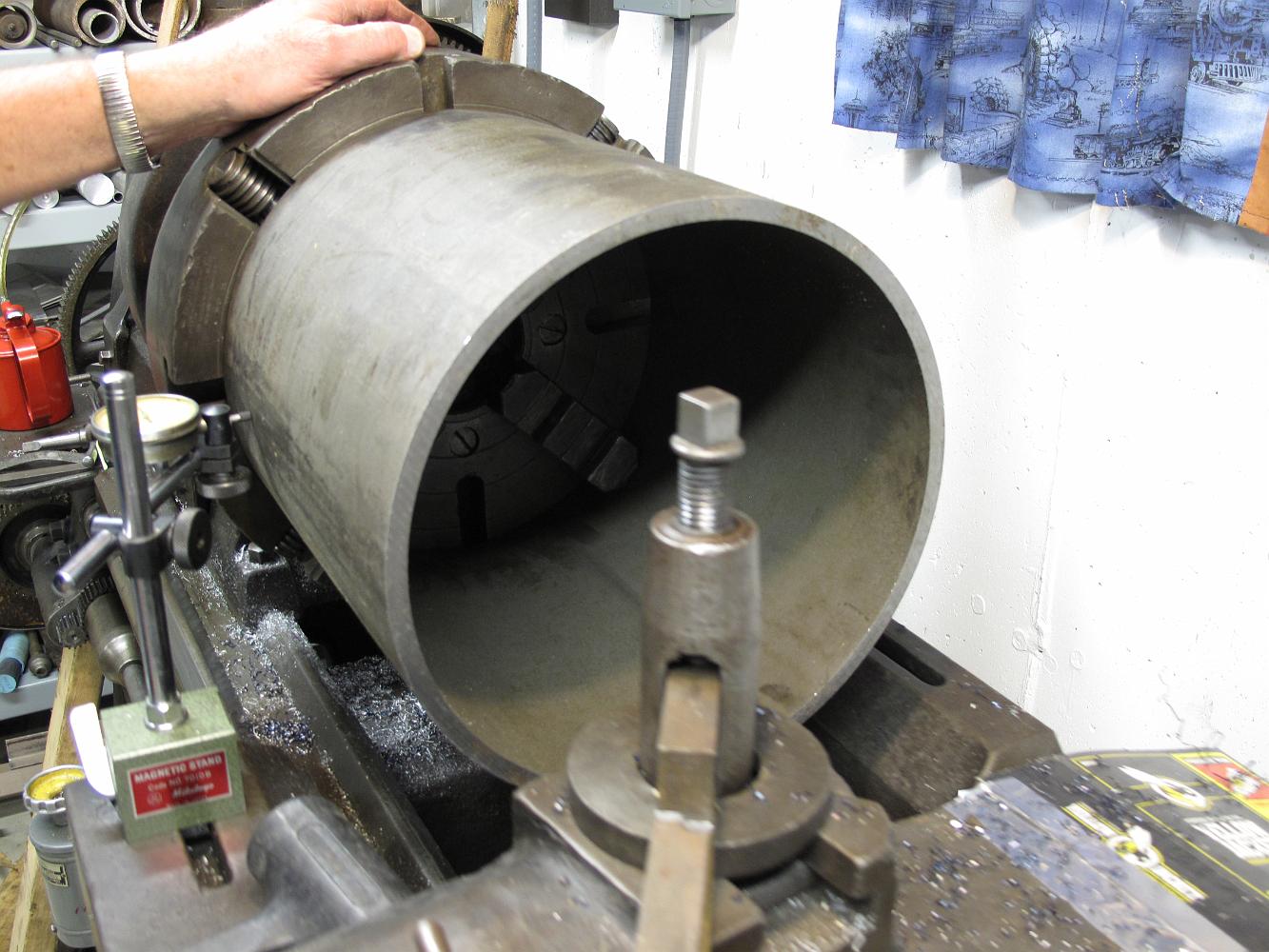

Finishing the centering operation with the dial indicator. Next we clamp down a nice sharp piece of high speed steel in the lantern style tool post and face the end of the pipe.
