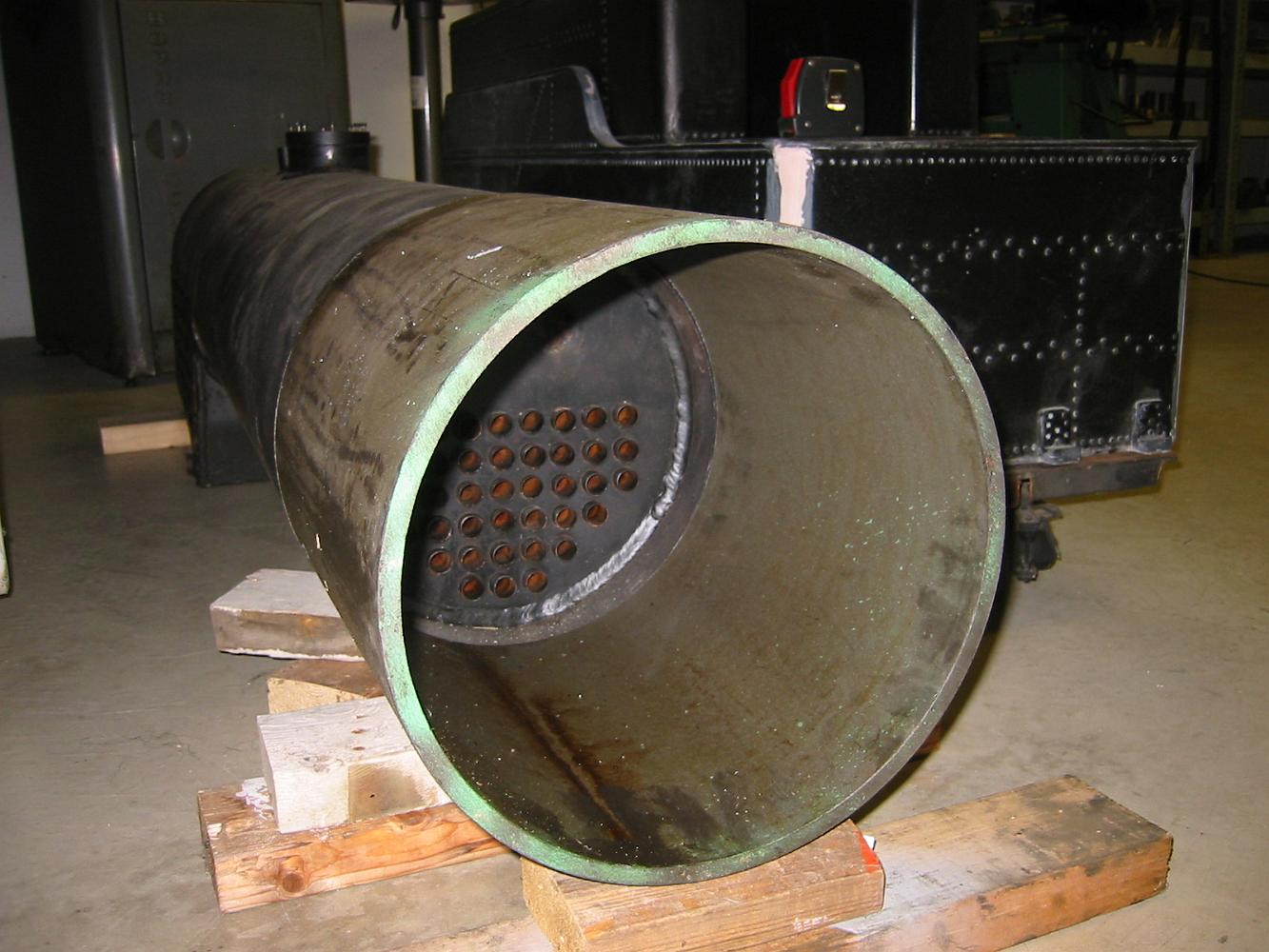

9-Feb-08 Thanks to my friend Tim M., who is also building a Mikado and having a boiler built, I was able to get a cut of the boiler pipe for my smokebox. It is 12" long, and makes the whole boiler look _that_much_bigger_!
