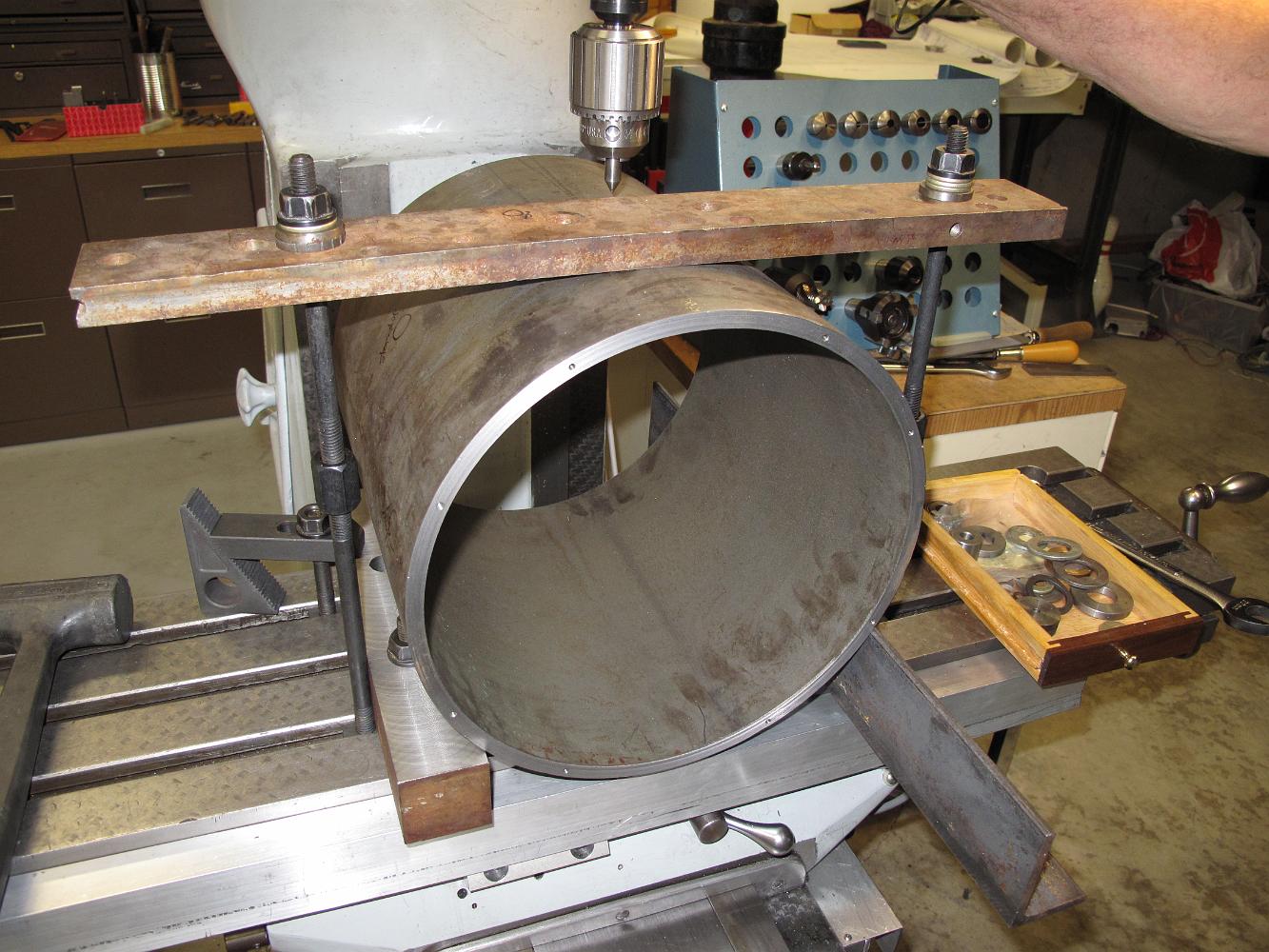

With a 4" piece of angle channel on the other side and a piece bridging the top, we have a secure hold on the pipe, but only for light cuts. Before starting to drill the blastpipe hole in the bottom, we used a large square across the table ways to line up the smokestack and blastpipe marks on shell edge.
