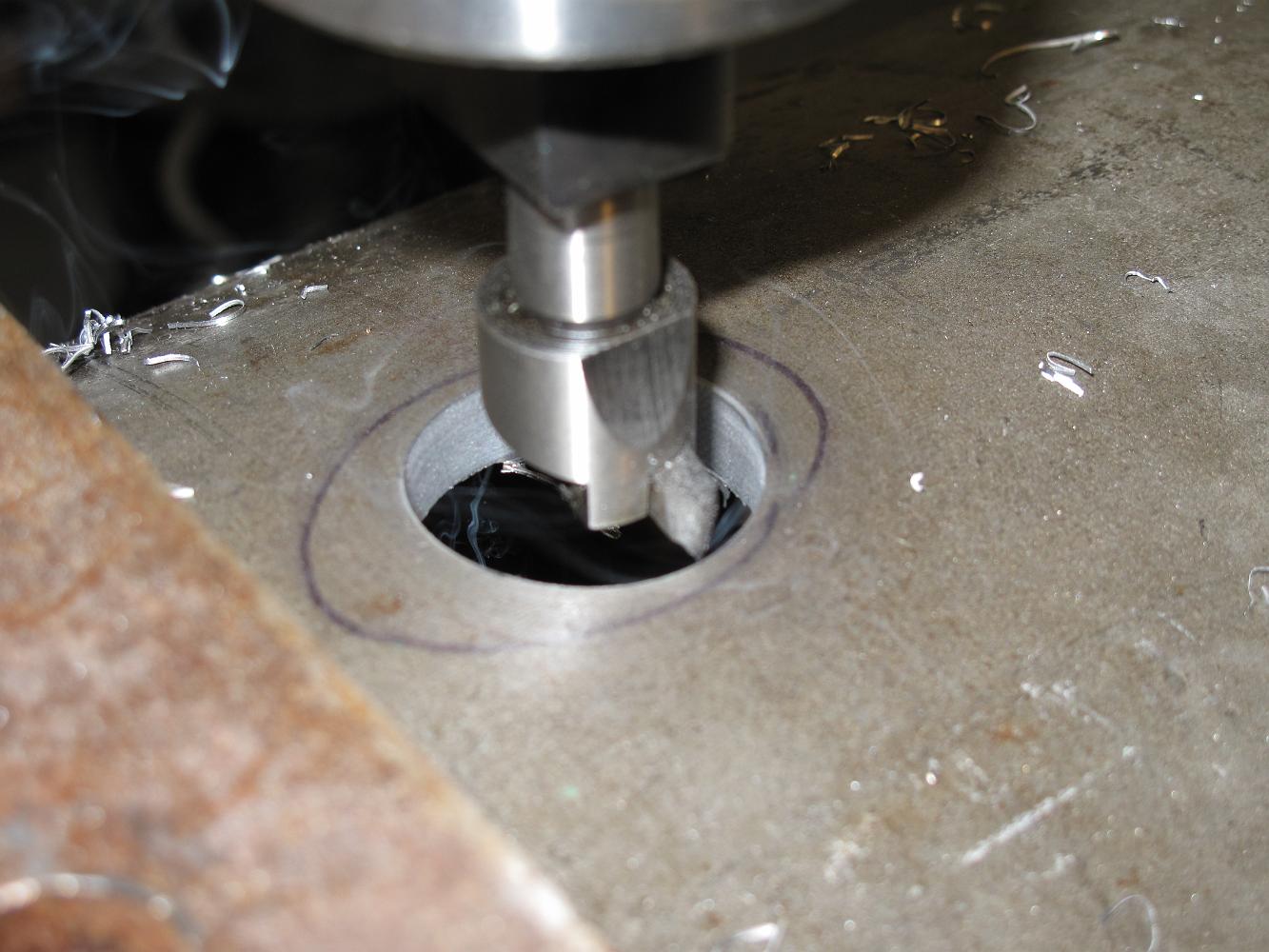

Having quickly reached the size limit of the boring head with boring bars, we start a progression of larger flycutters mounted in the boring head to enlarge the hole to the 2" size.
