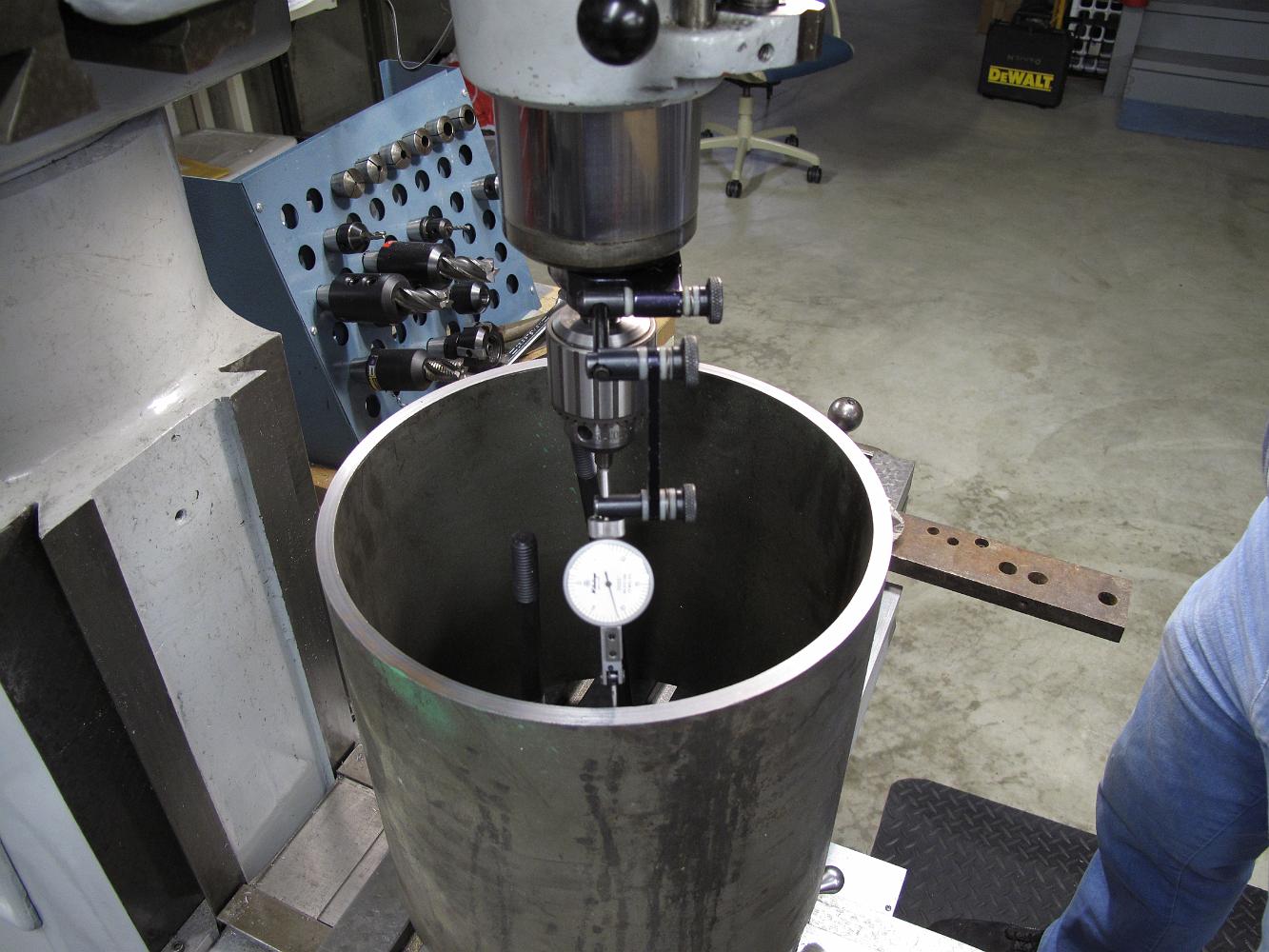

With the bridgeport knee all the way to the bottom and the ram pulled out a bit more, we do our best to center the pipe in the mill. We discover the pipe is not completely round by about 15 thou. Not a problem since the boiler is almost 1/8" out of round!
