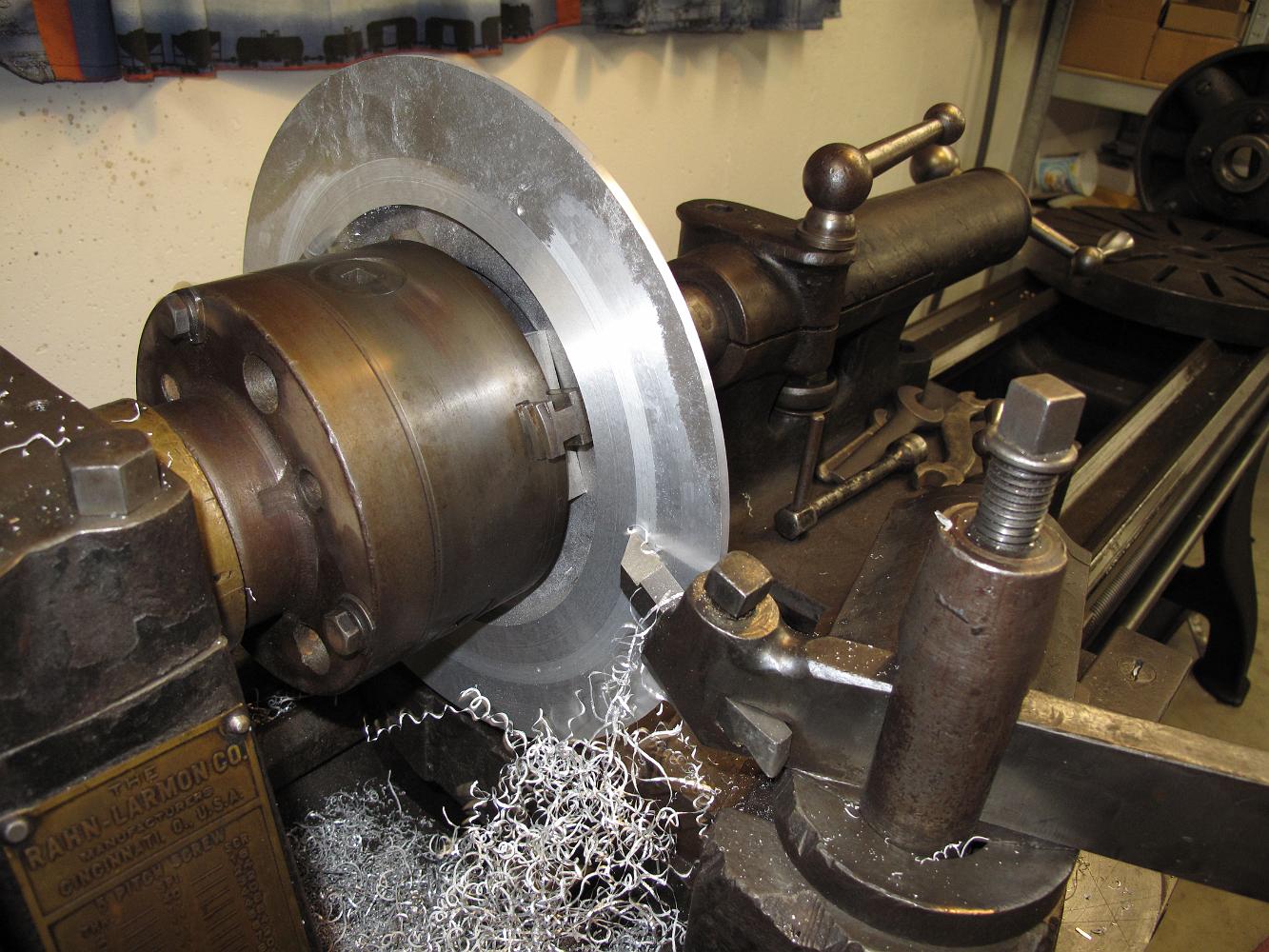

Running in open belt, about 258 rpm, we take light cuts from the inside working out with a nice sharp high-speed toolbit.
