ExhibitPlus IMG_5472

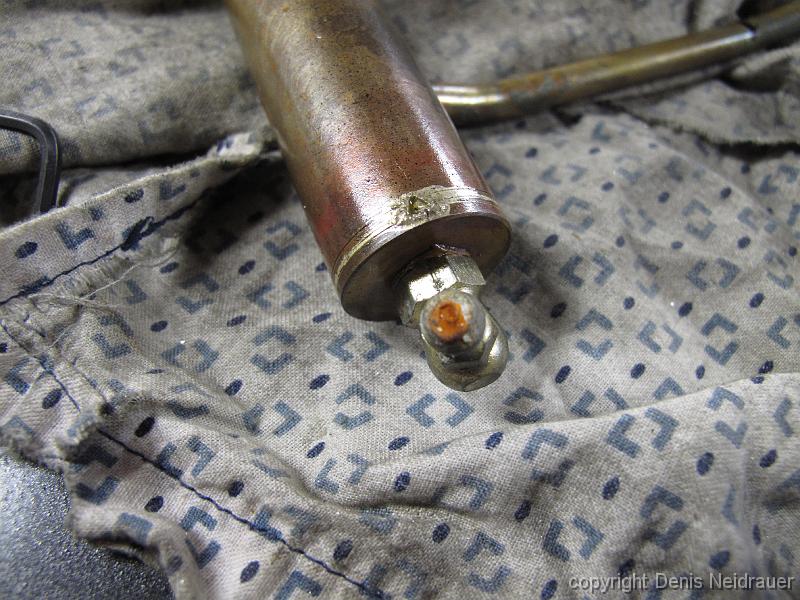

15-Mar-2014 After only two operating sessions, the steel ball in this automatic blowdown has rusted away to non-functional. I replace the ball with a stainless one and now this drain for the train brakes works properly.
