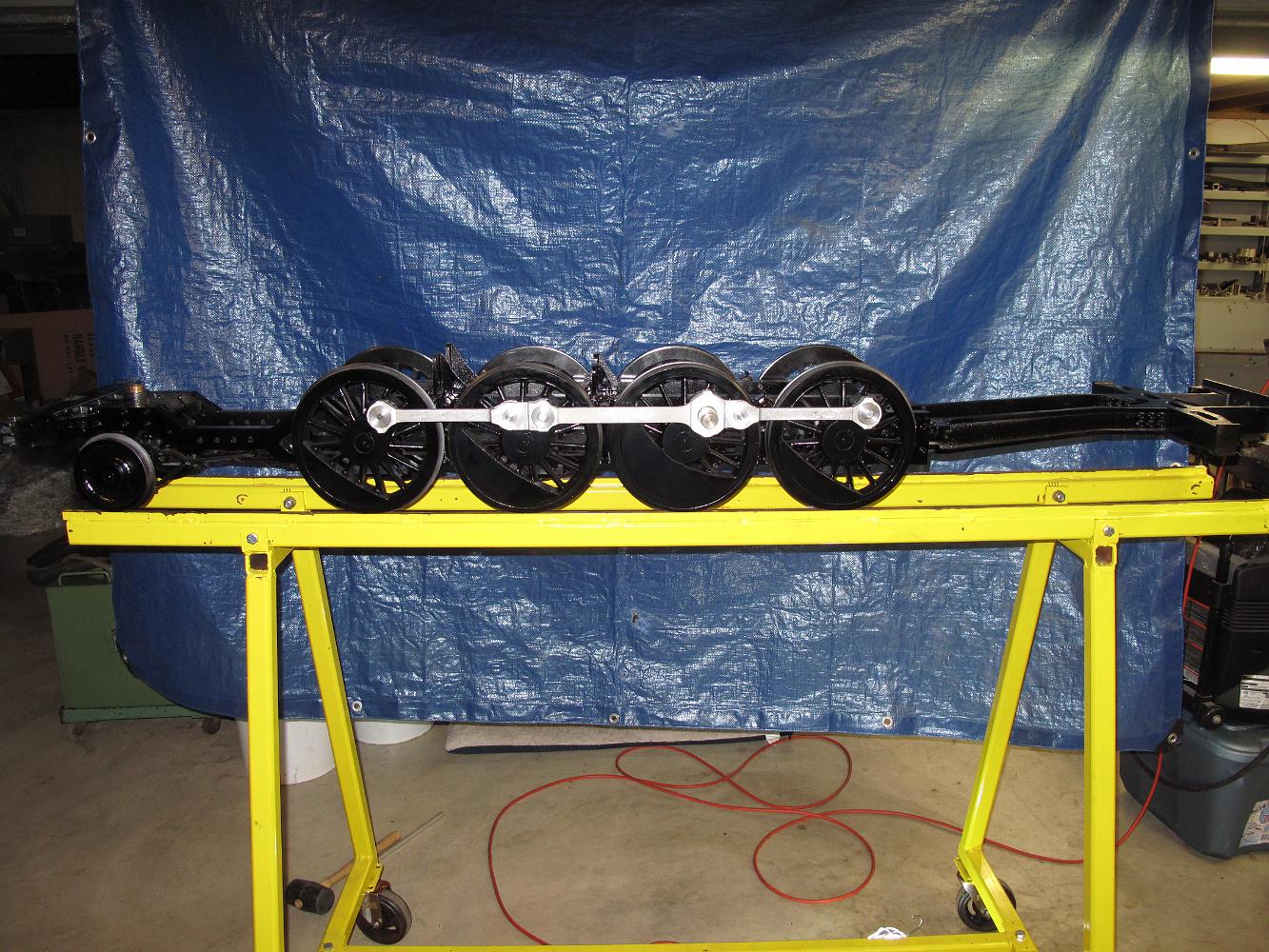

Add the trailing truck next. Work on shortening suspension pins on the trailing truck before that can be put underneath. Also discover the brake hangers and brake beams should be installed on the frame first, then the wheels. The hangers simply cannot go in on the beams and up into the bracket at the same time without the wheels getting in the way.
