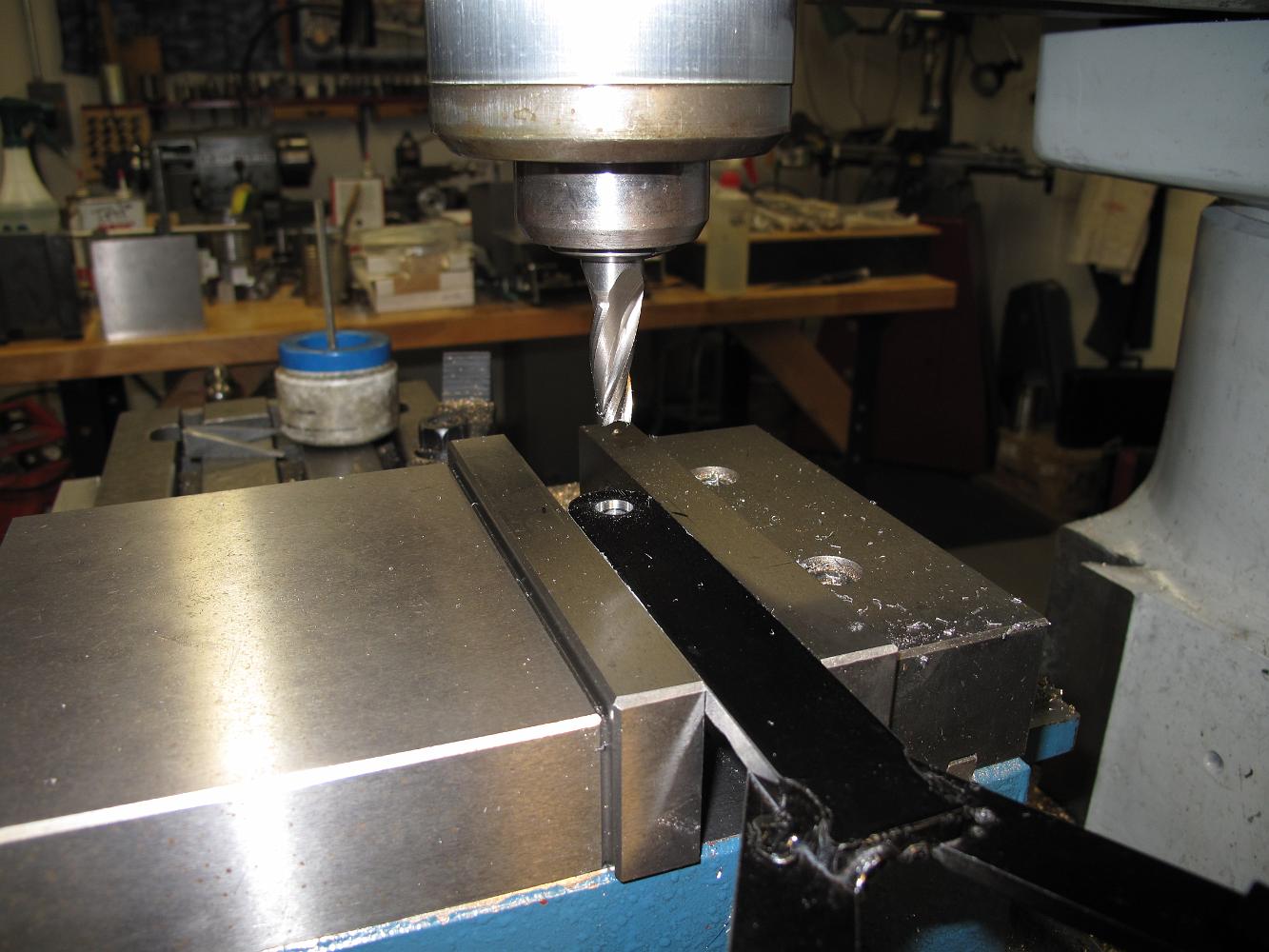

6-Oct-09 We make a minor change to the Pilot truck bracket -- using a 5 degree tapered endmill (we didn't have a 10 degree), we open the top and bottom of the hole up to allow more vertical freedom of movement in the truck without changing the hole location.
