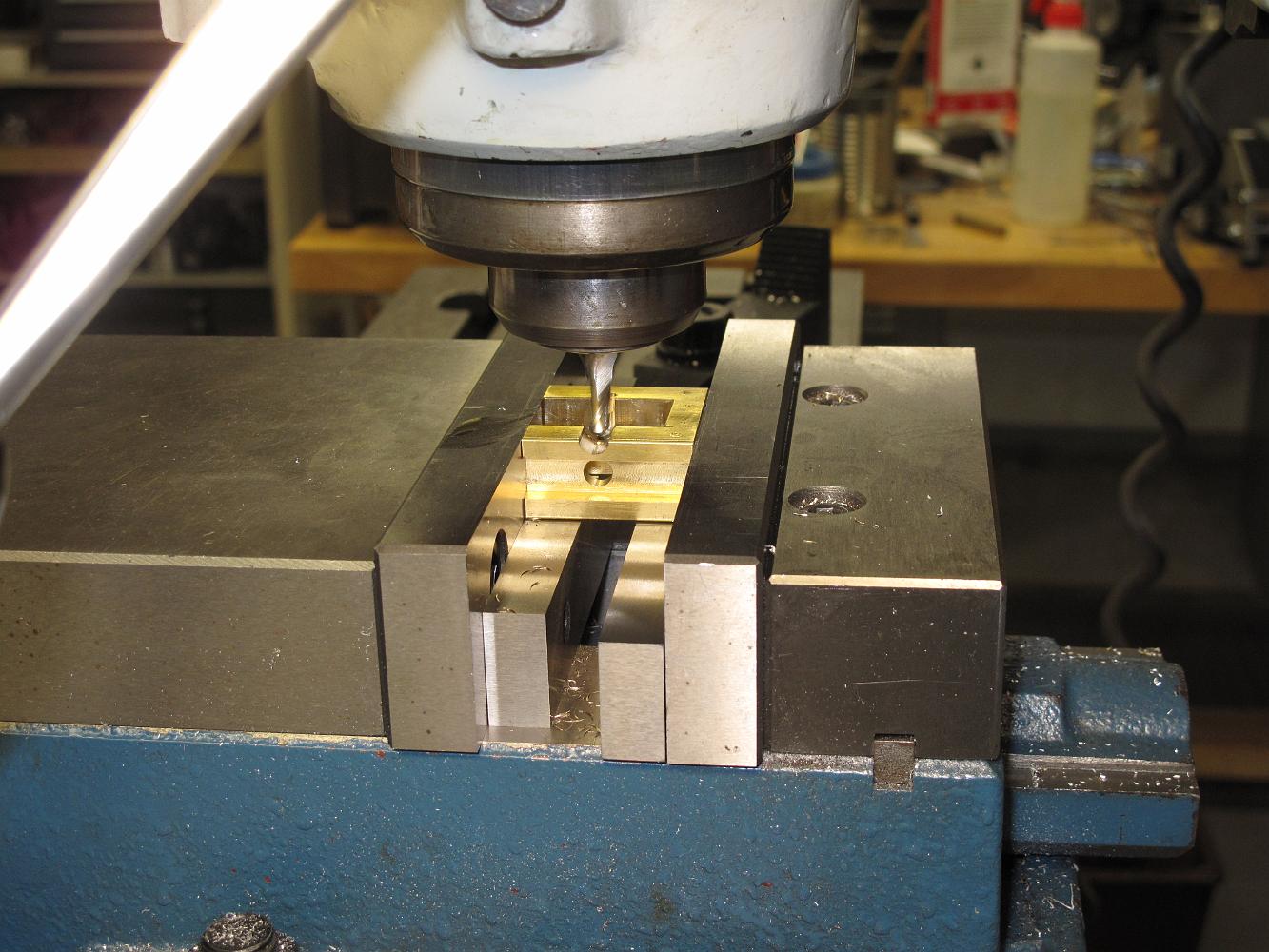

25-Nov-09 After putting flats on the pins, we dry fit the rods we discover we cannot assemble things - there is not enough clearance in the half-slot to put the pin in. We originally put both crossheads together and drilled the half slots in one operation. To enlarge and deepen the slot, Bill put a ball mill in the mill and both widened and deepend the slot to provide clearance.
