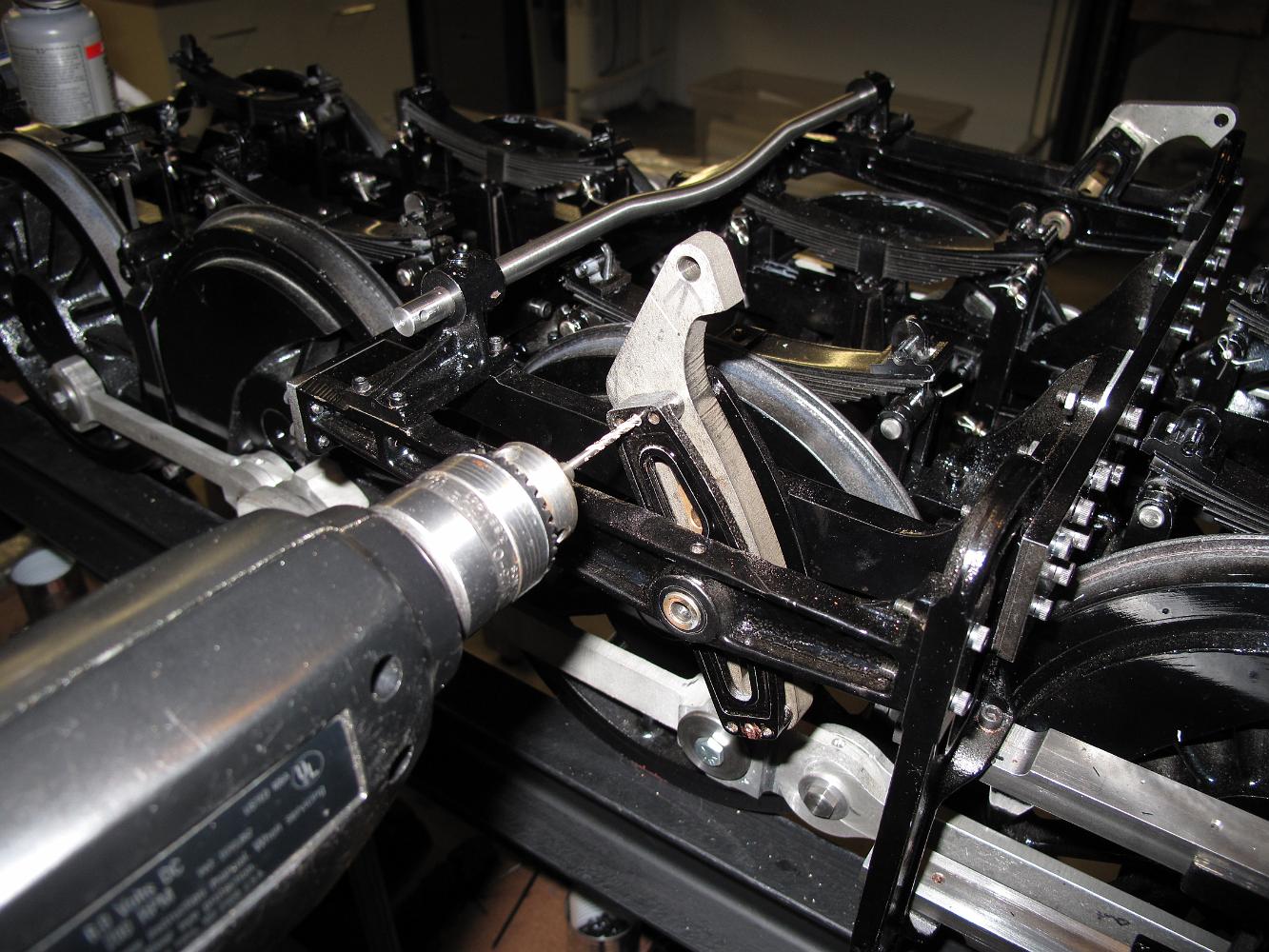

24-Nov-09 Drilling the holes for the roll pins one more drill size larger. The 3/32" holes were just too small for the roll pins, completely closing them up when we tried to install them at first. With the Pins installed, we know we can maintain parallelism and smooth operation of the expansion link mechanism no matter what the bolts do when tightened.
