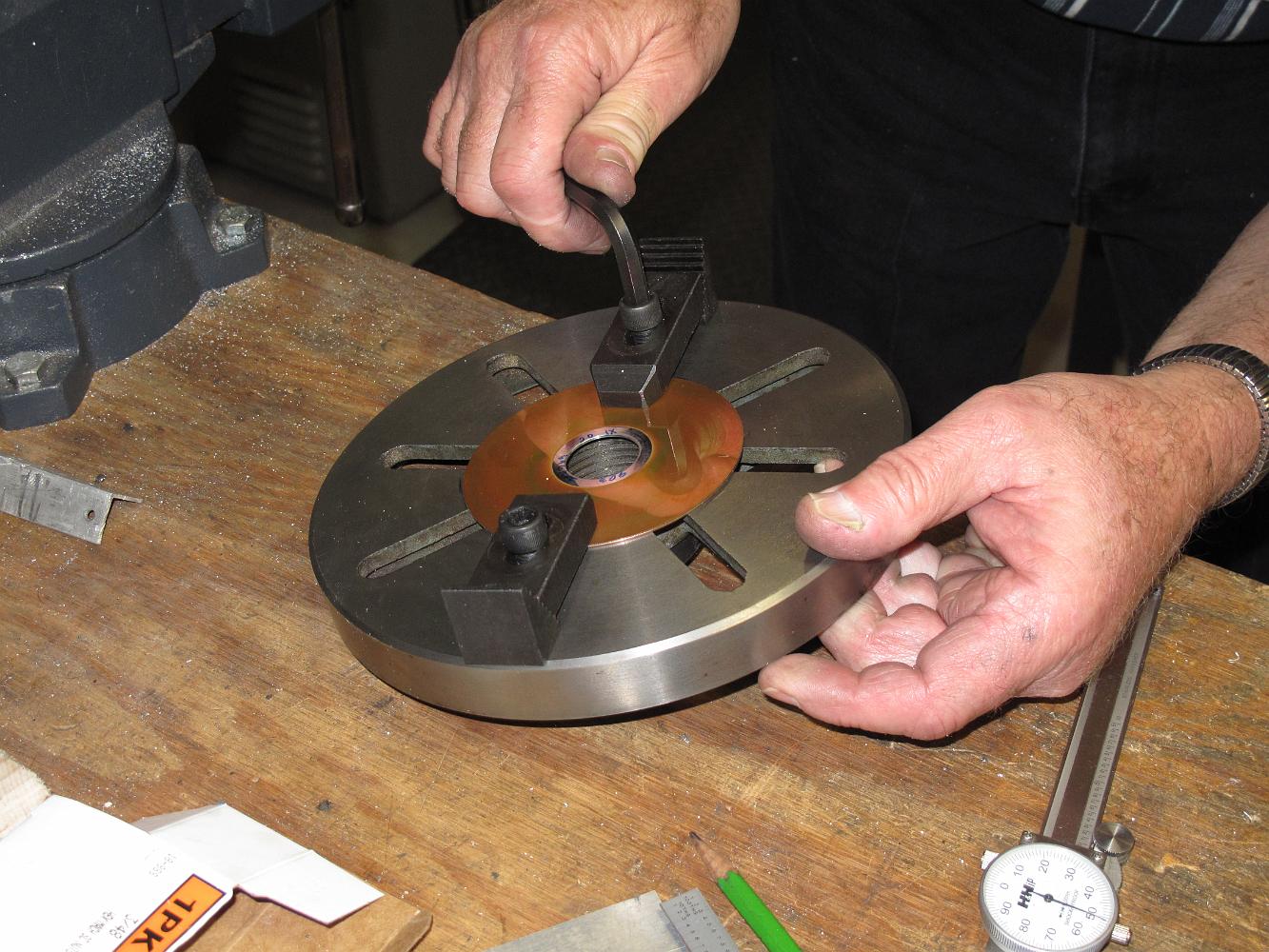

What do you do with your old computers hard drives? I take mine apart and keep the polished aluminum disks for scrap parts. Here Bill is bolting one to the faceplate to bore out for a valve gasket template.
