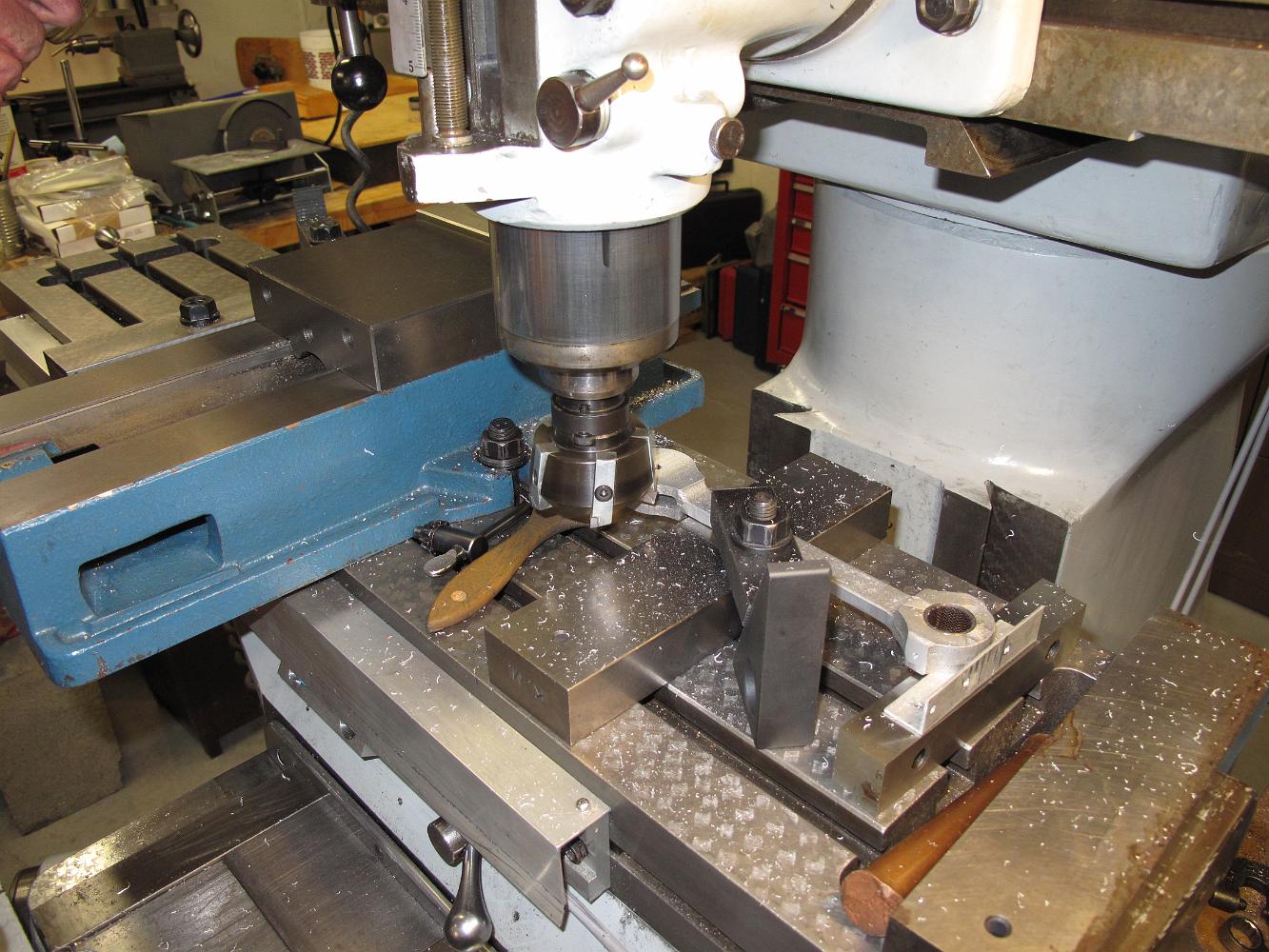

18-Nov-09 After assembly we saw the front and rear rods ends were a paint thickness away from striking the brake hangers. We know things will loosen up as the wear in, so we removed .030 from the backside of the rod end, shortened the bolt in the lathe and smoothed the sharp corners with a small belt sander.
