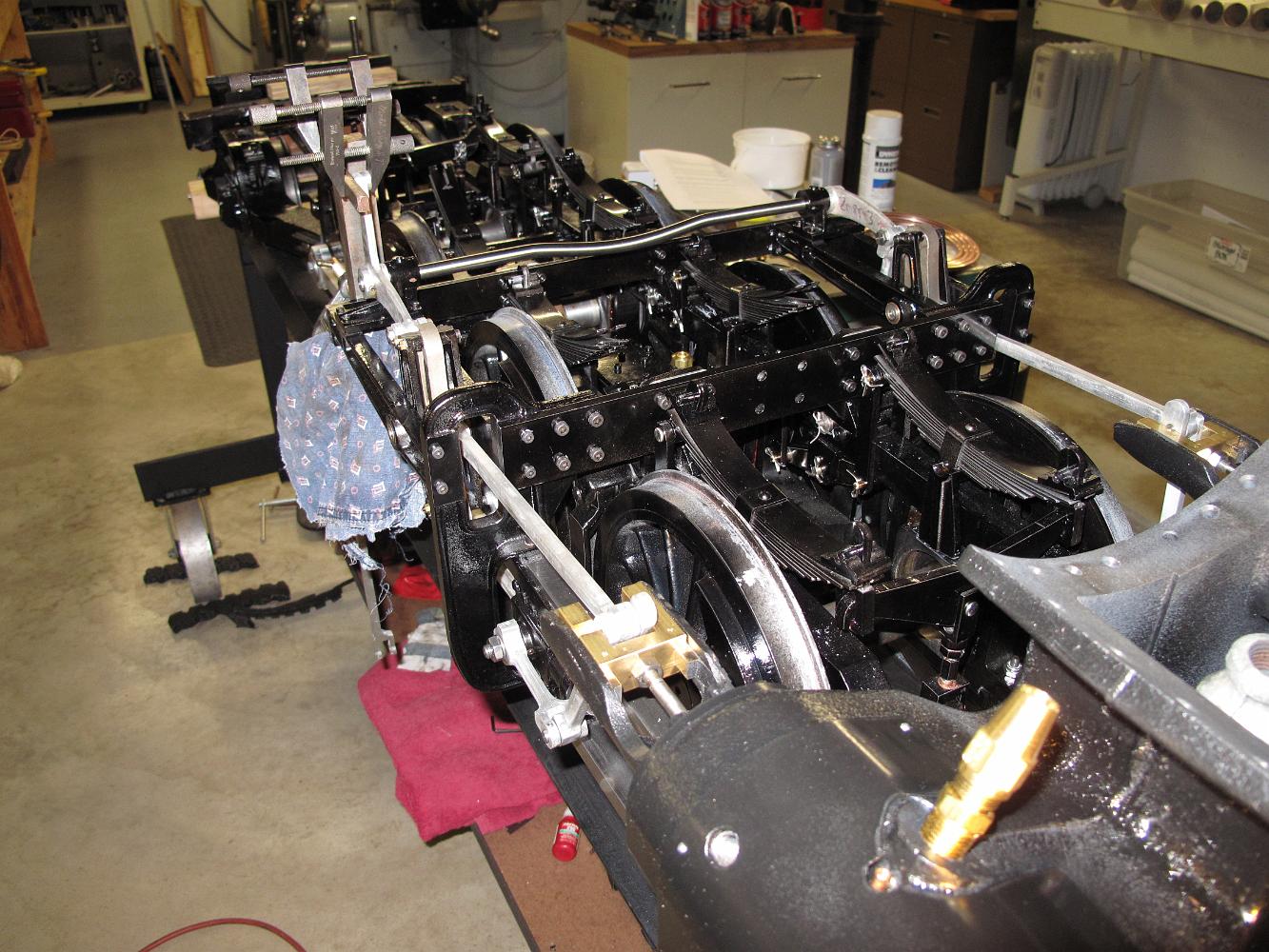

The Valve spools have been centered in the valve cylinder using the inspection holes in the cylinders. Locking the tumbling shaft down with machinist clamps, we roll the wheels over by hand and see how things feel.
