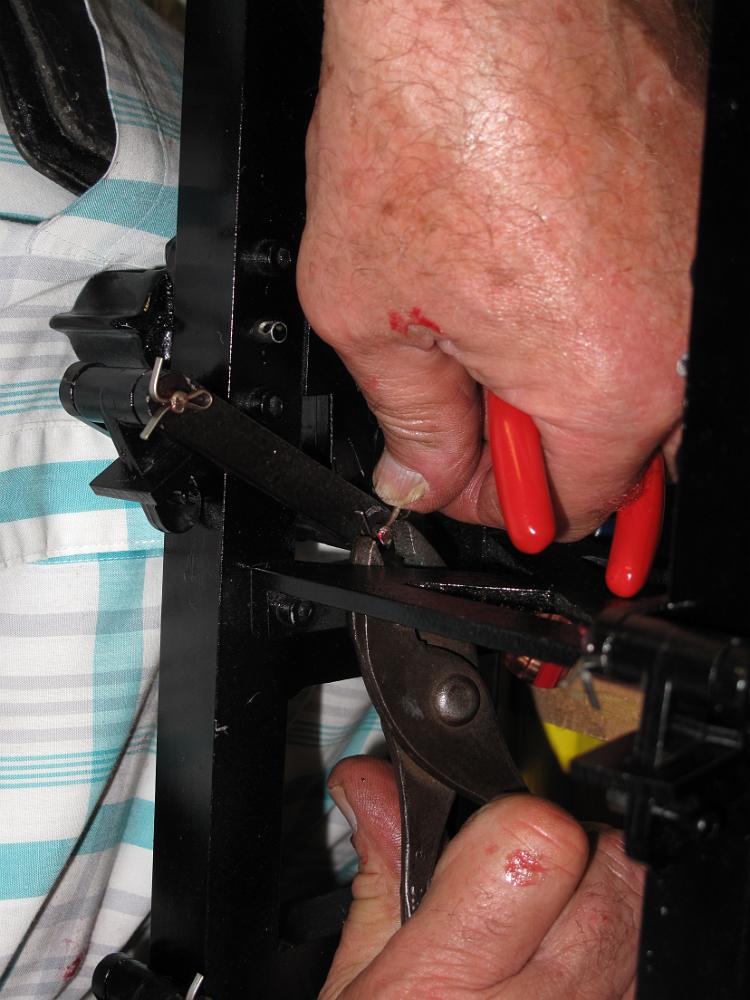

One more cotter pin bent, 47 more to go. These little 1/16" pins are tough to bend! And no, that is not blood on Bill's hand, but Red Grease, a lubricant we put on all the pins before assembly. I don't know how we are supposed to lubricate these parts later on, there are no provisions it.
