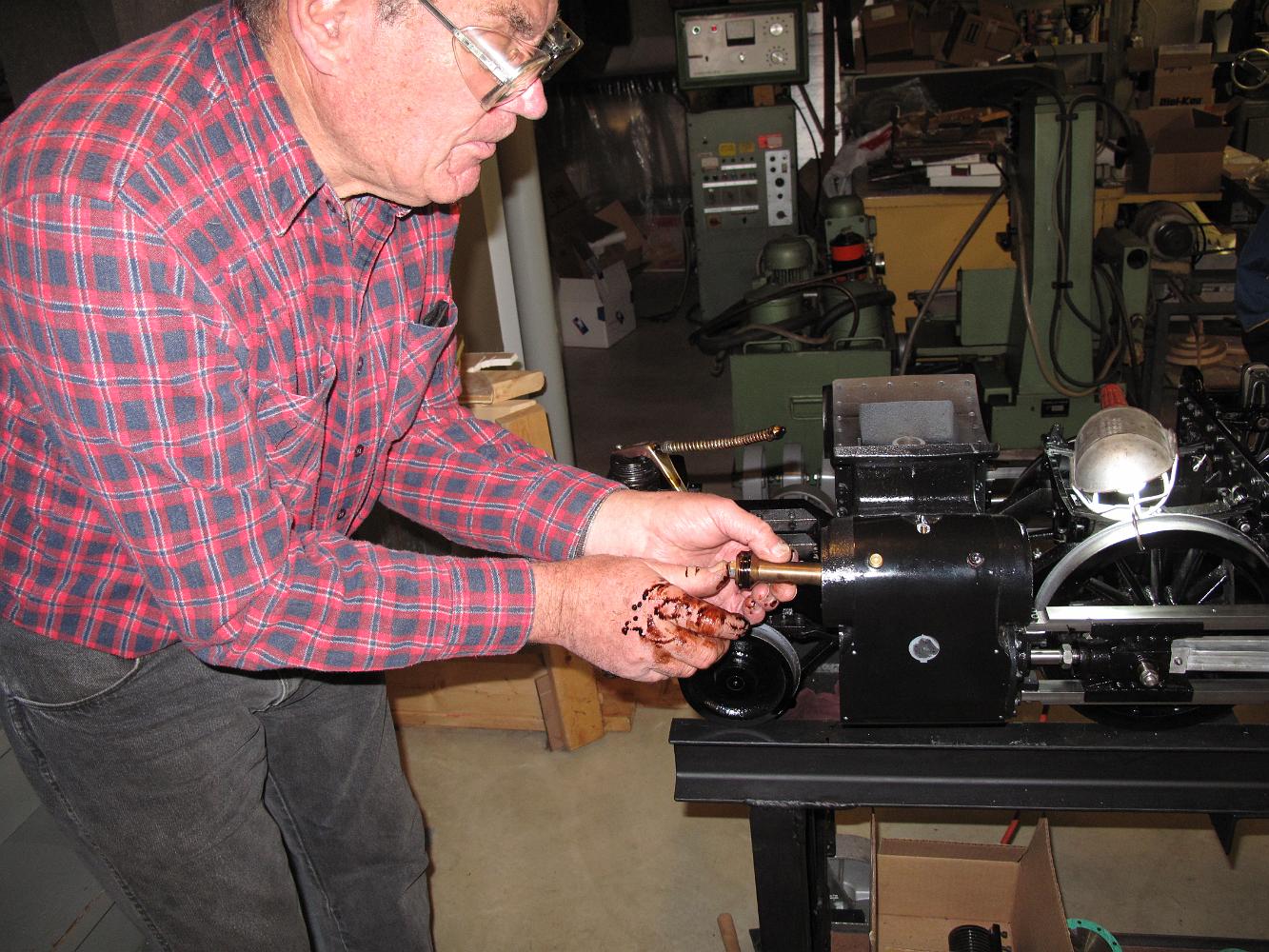

Chocolate syrup on the hands? No just old fashioned steam oil which has been spread on the piston and valve cylinder walls, also worked into the cast iron rings for installation. The ring gaps have been positioned 180 degrees from each other. Thanks to a generous chamfer on the liners, the pistons and valve spools slip right in.
