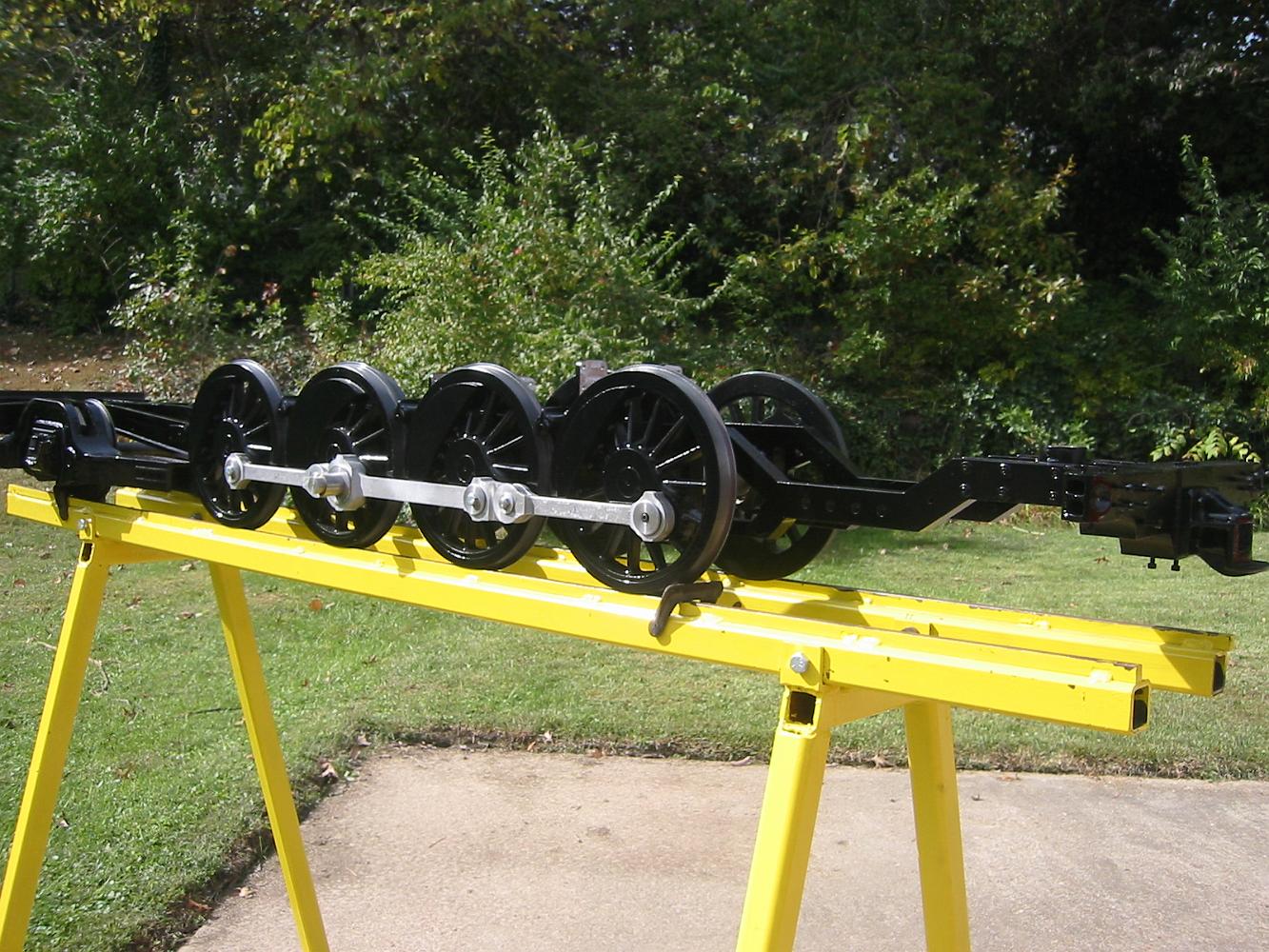

19-Oct-08 The painted chassie is put on the wheels and the delta trailing truck fitted underneath. Assembly is so much fun! But this isn't the final assembly -- I needed the space in the garage from painting all the parts, the easiest way to store them is partially assembled!
