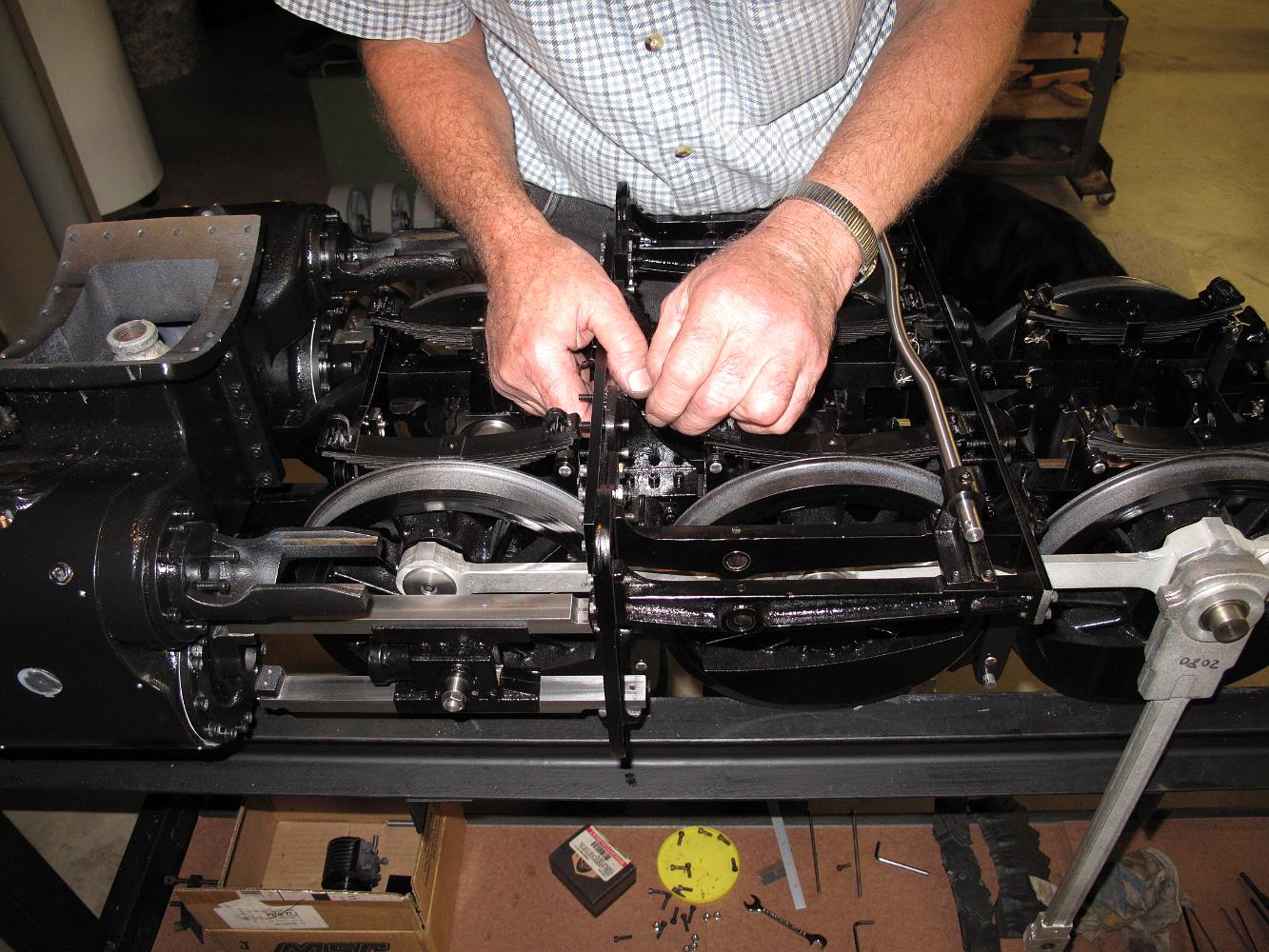

Fitting the .064" thick aluminum shims between the Link Support Brackets and the Link Support Bars. For some reason the Brackets are too far back on the frame in relation to the cylinders, so we need to shim the bracket assembly forward to the correct position.
