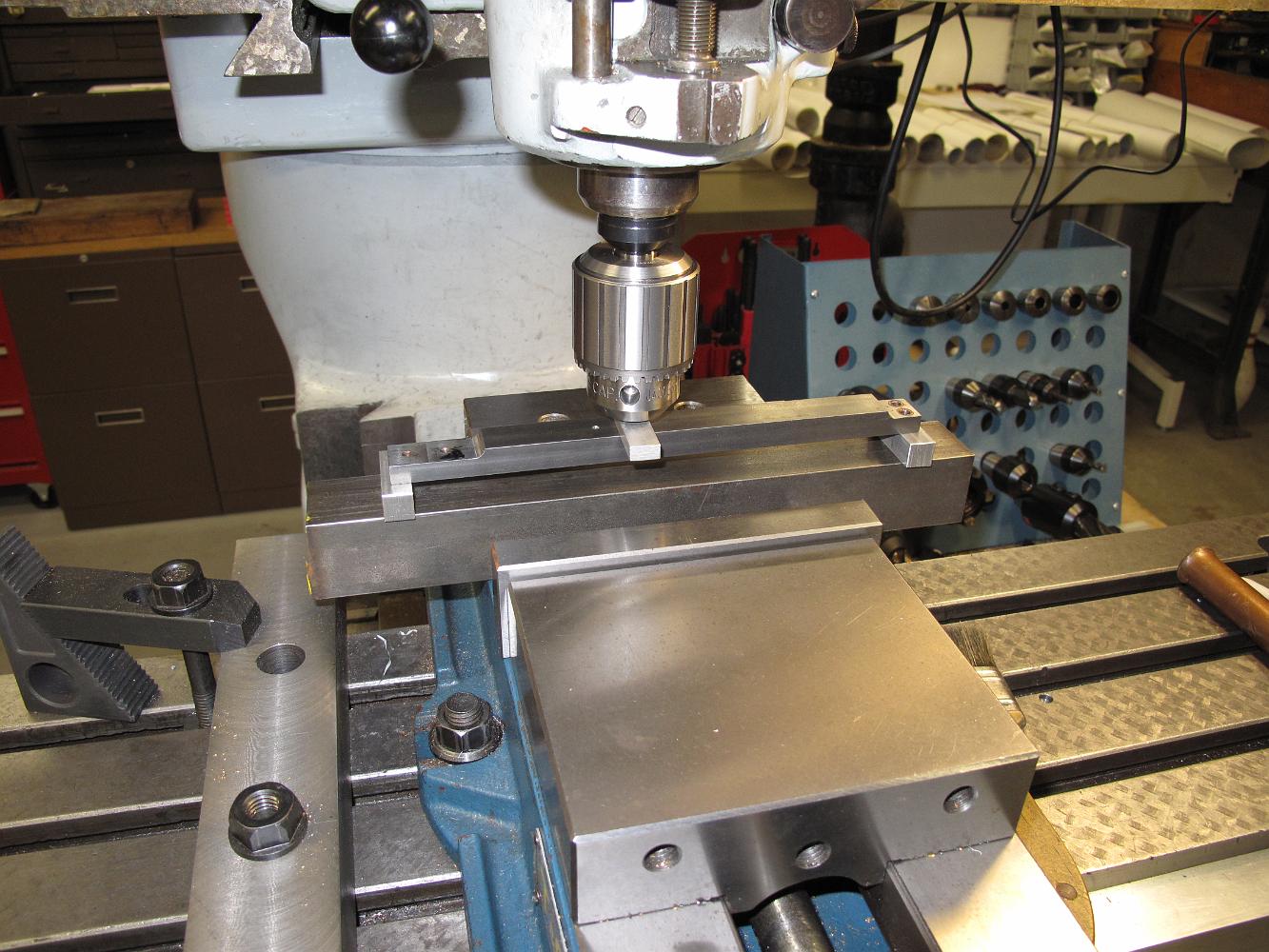

I probably shouldn't show this photo. Using the quill of a mill to unbend metal really is the wrong tool. This is where a press would come in handy to straighten them out, but we make do with what's in the shop.
