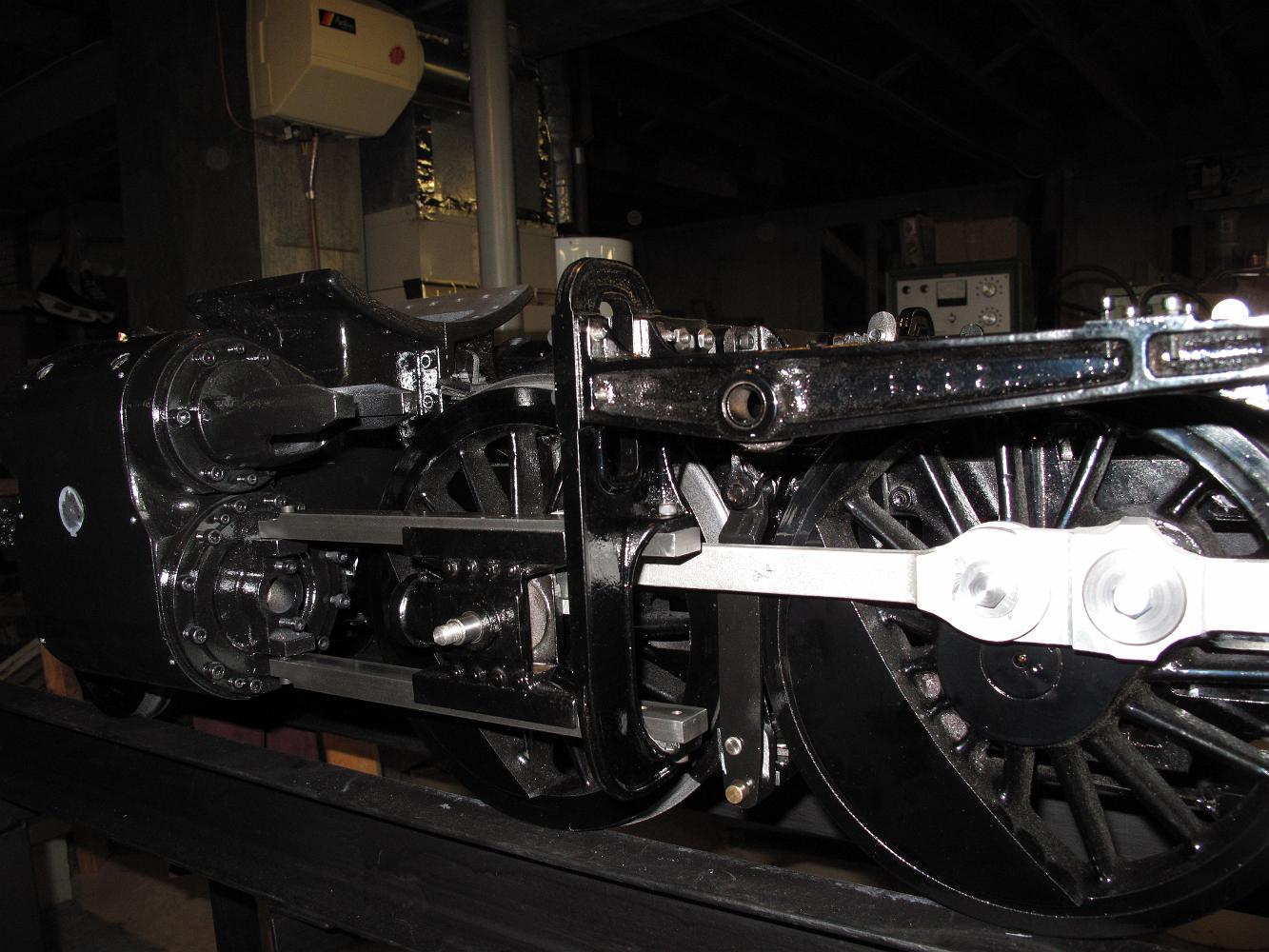

14-Oct-09 The motion structure temporarily in place. We need to shim the whole assembly .065 forward from the mounting brackets, but before we can do that we have to make the read cylinder head gaskets and install them.
