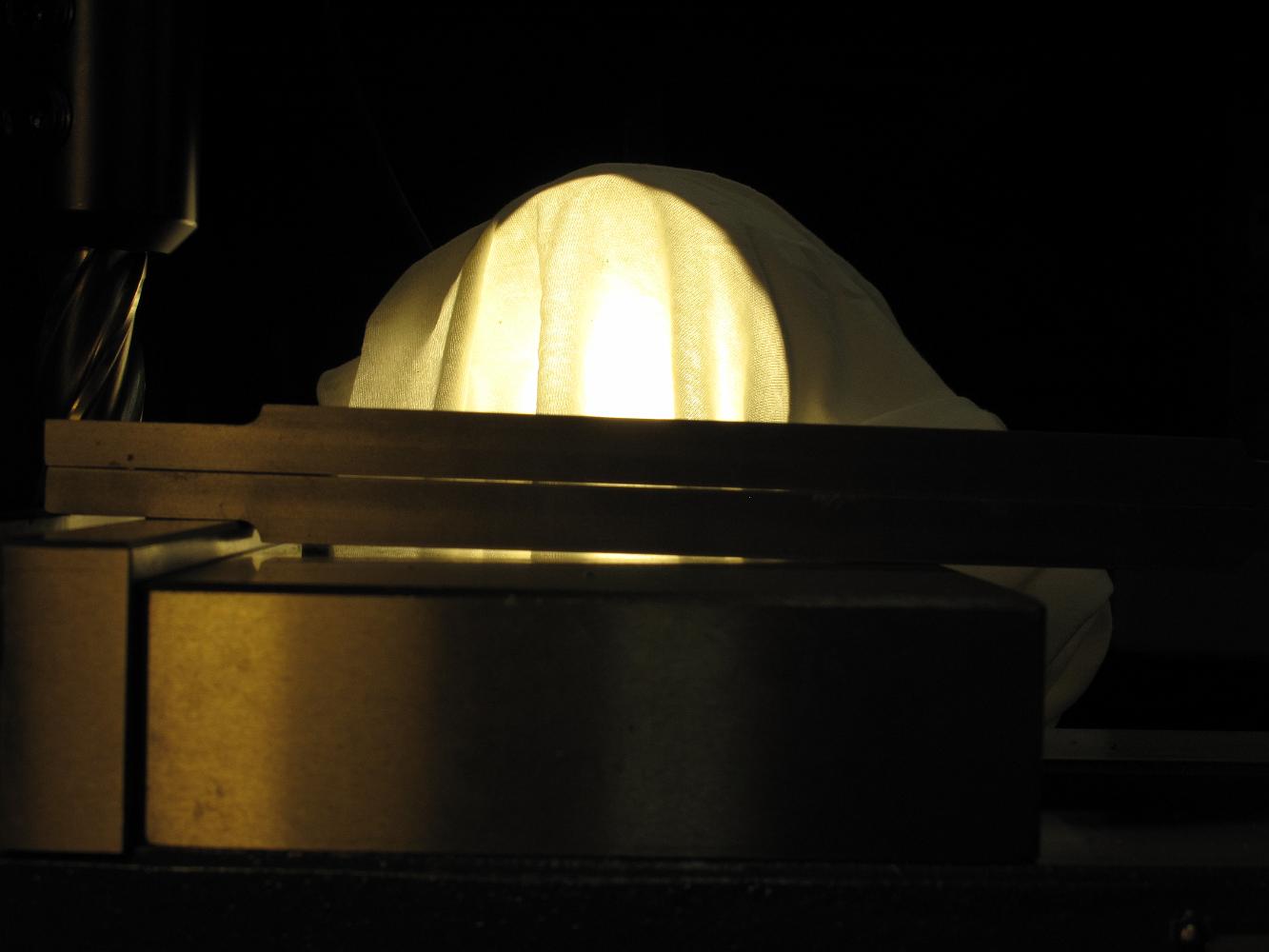

During the machining operation, inherent stress in the cold-rolled metal is exposed. Here you can see the sliver of light between the two bars which have warped at the ends. A few minutes in the vice bent them back to where they belonged.
