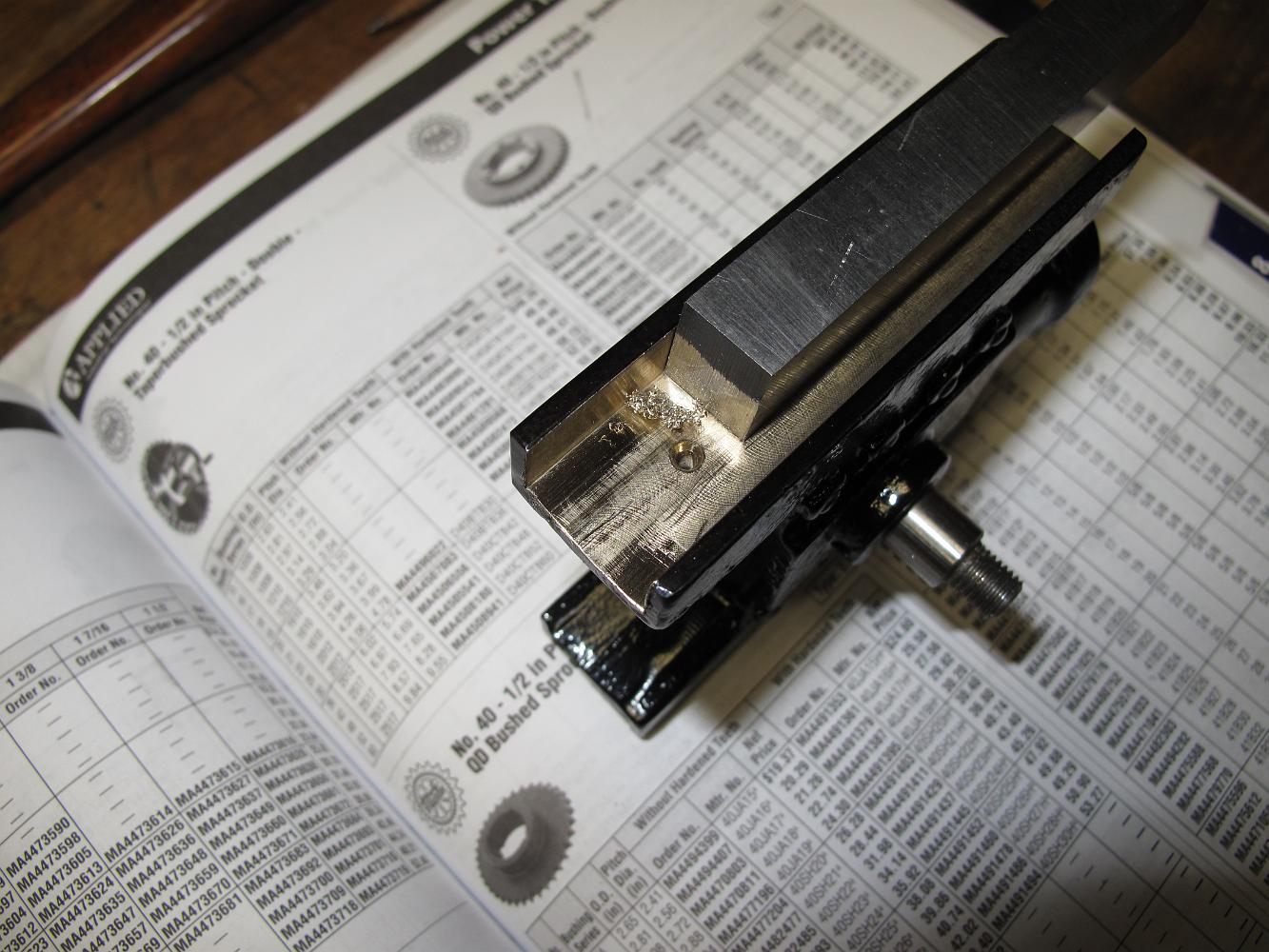

While troubleshooting the crosshead assembly fit problem, we thought maybe the problem was the crossheads were not properly seating on the guide bar because of a slight rounded inside corner in the shoe. Taking a piece of high-speed-steel, Bill showed me how to scrape in a bearing surface. Held at the proper angle, pushing the scraper peeled the corner of metal out was as easy as pushing a pencil.
