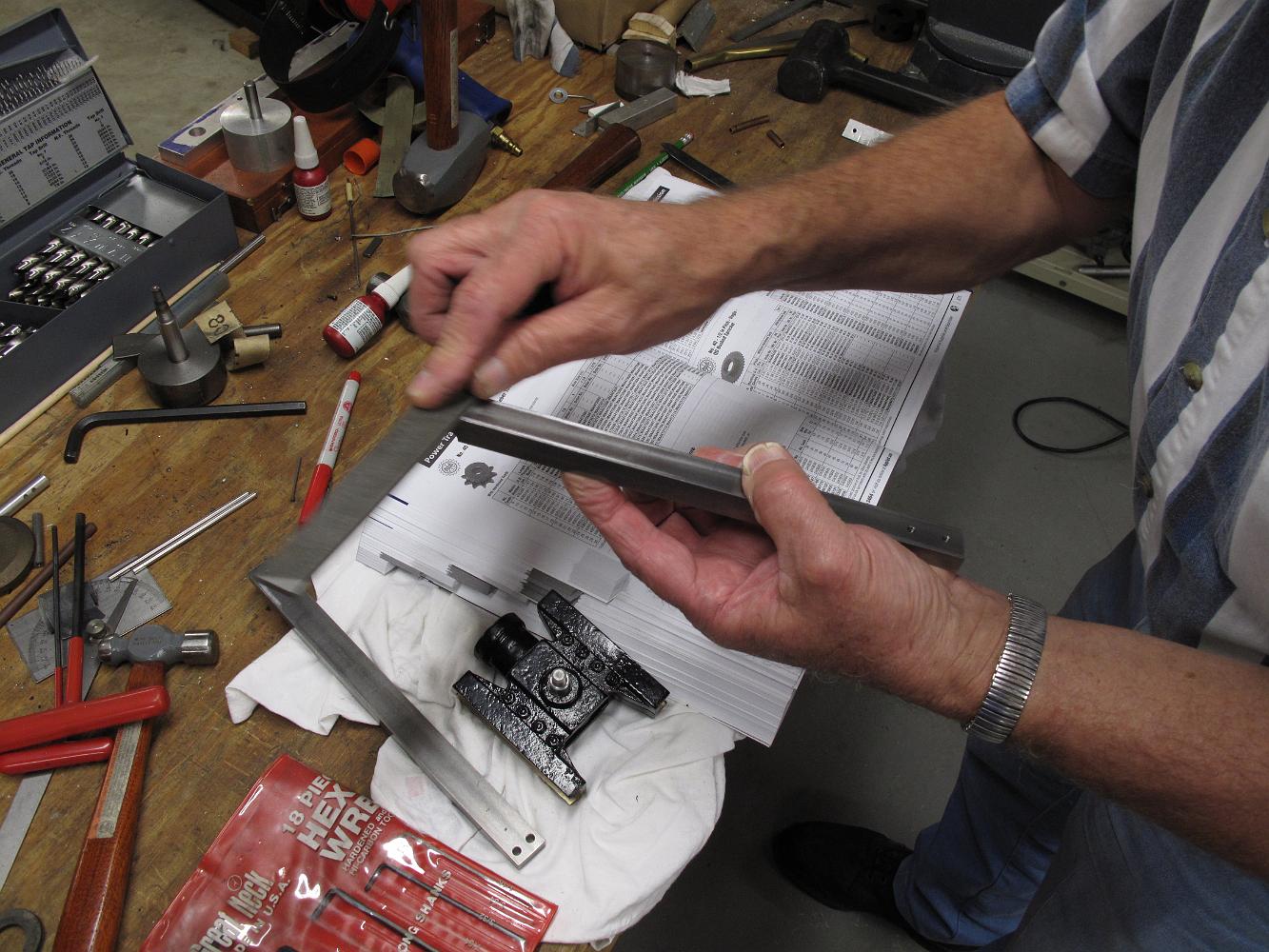

Draw filing the bearing surface of the crosshead guide bars. The file reveals the flat surface is actually cupped, with the corners high. Mic'ing the bar at the outside and then at the middle gave different readings.
