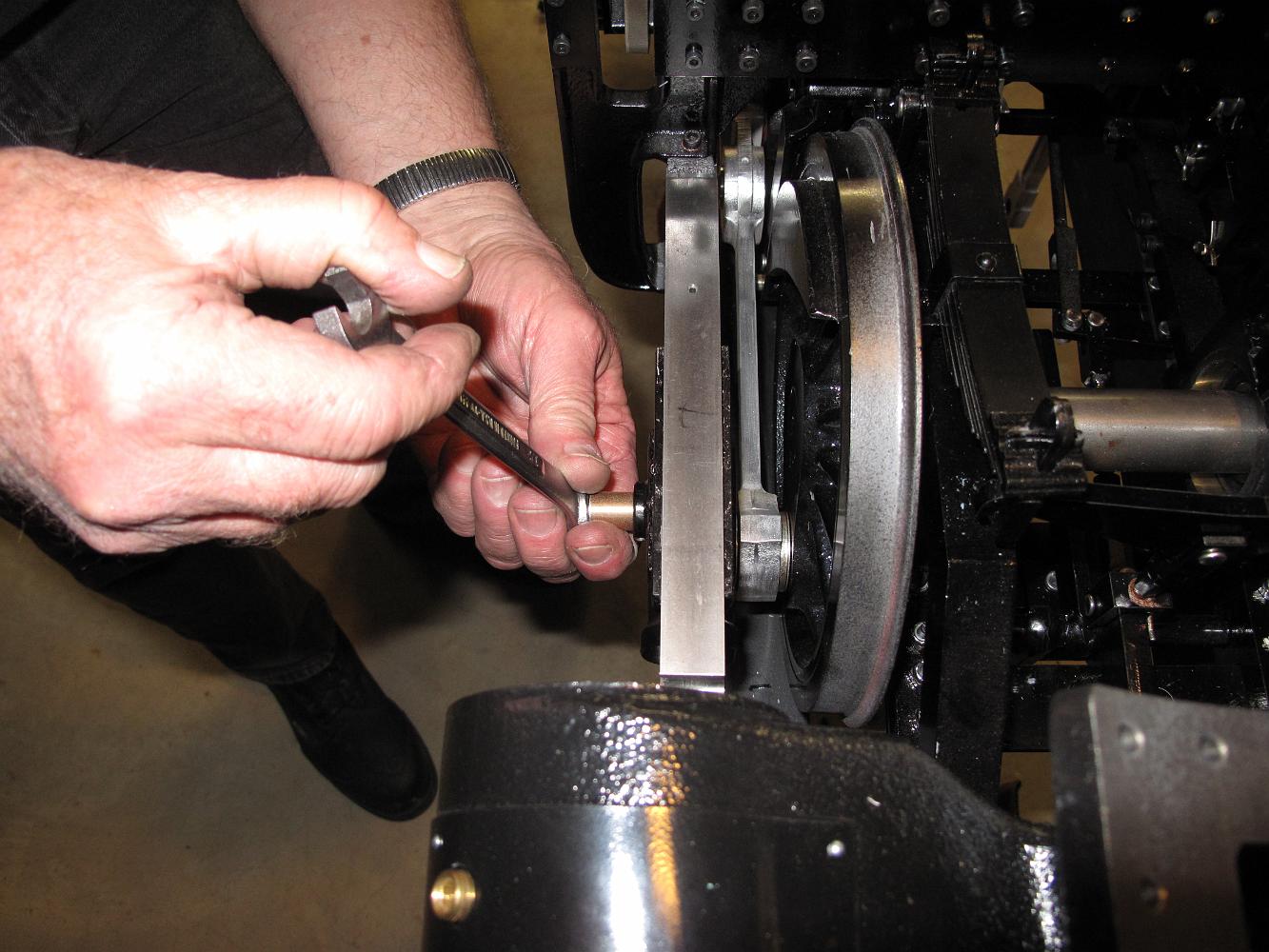

Bill uses a bushing to pull the crosshead pin out of the crosshead. There was a slight burr from drilling the roll pin hole which made it hard to pull out. We put the main rod in and proceeded to spend the next hour trying to line the pin up with the drilled roll pin hole. We made marks on the next one to show orientation before pulling the pin, it went much quicker.
