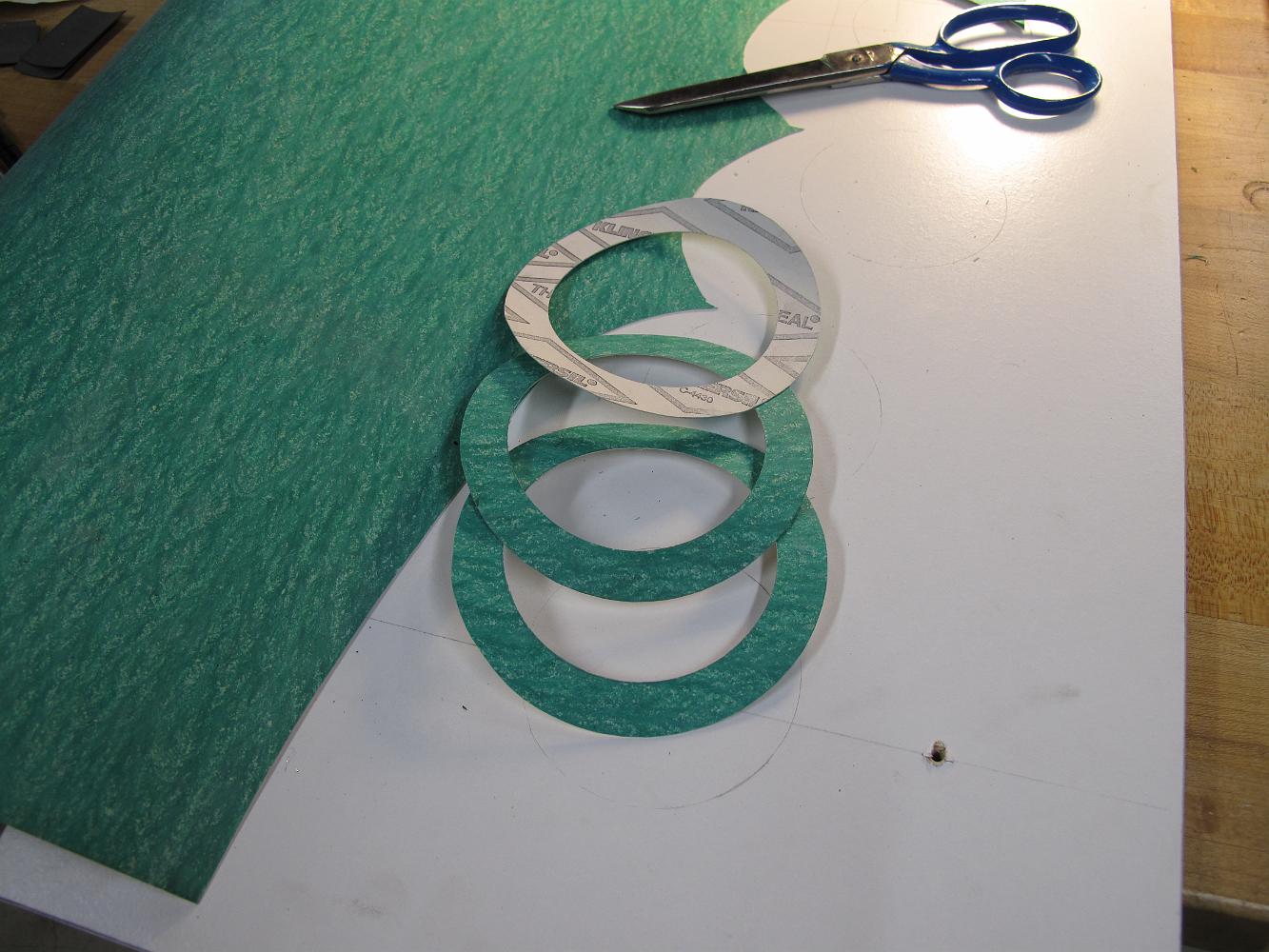

The cylinder gaskets ready for screw hole punching. We took an aluminum plate from an old hard drive which nearly had the correct ID, bored it out in the lathe to the correct size and used a sharp x-acto knife to follow the ID profile, creating a nice fitting gasket.
