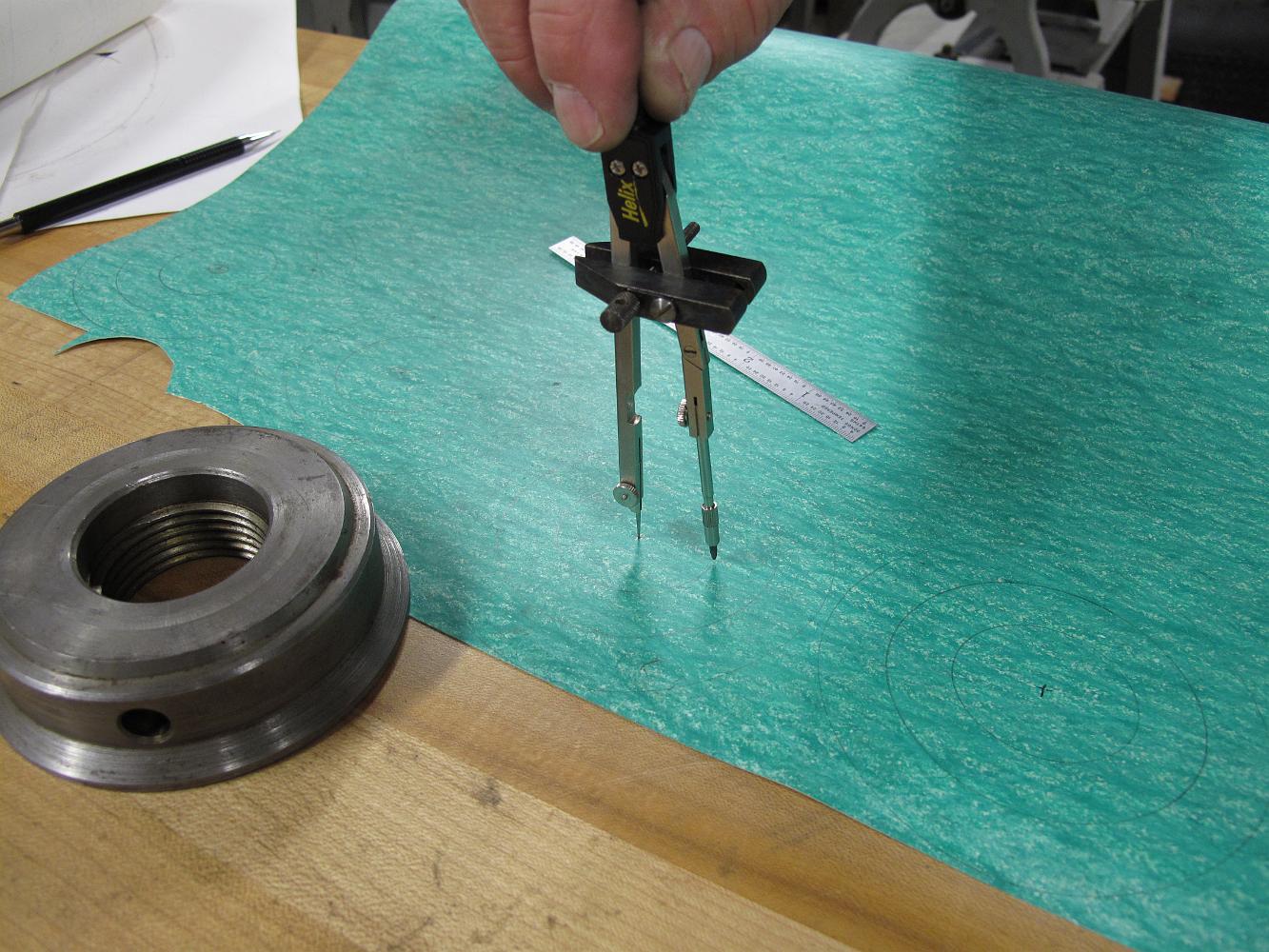

20-Oct-09 Using a divider to lay out the cylinder gaskets. I would have prefered to use a gasket cutter, but don't have one, so we will use the pencil and scissors route, at least for the outside dimension. My divider does not have a lock on it, so we put a small machinist clamp on it to make sure it does not move.
