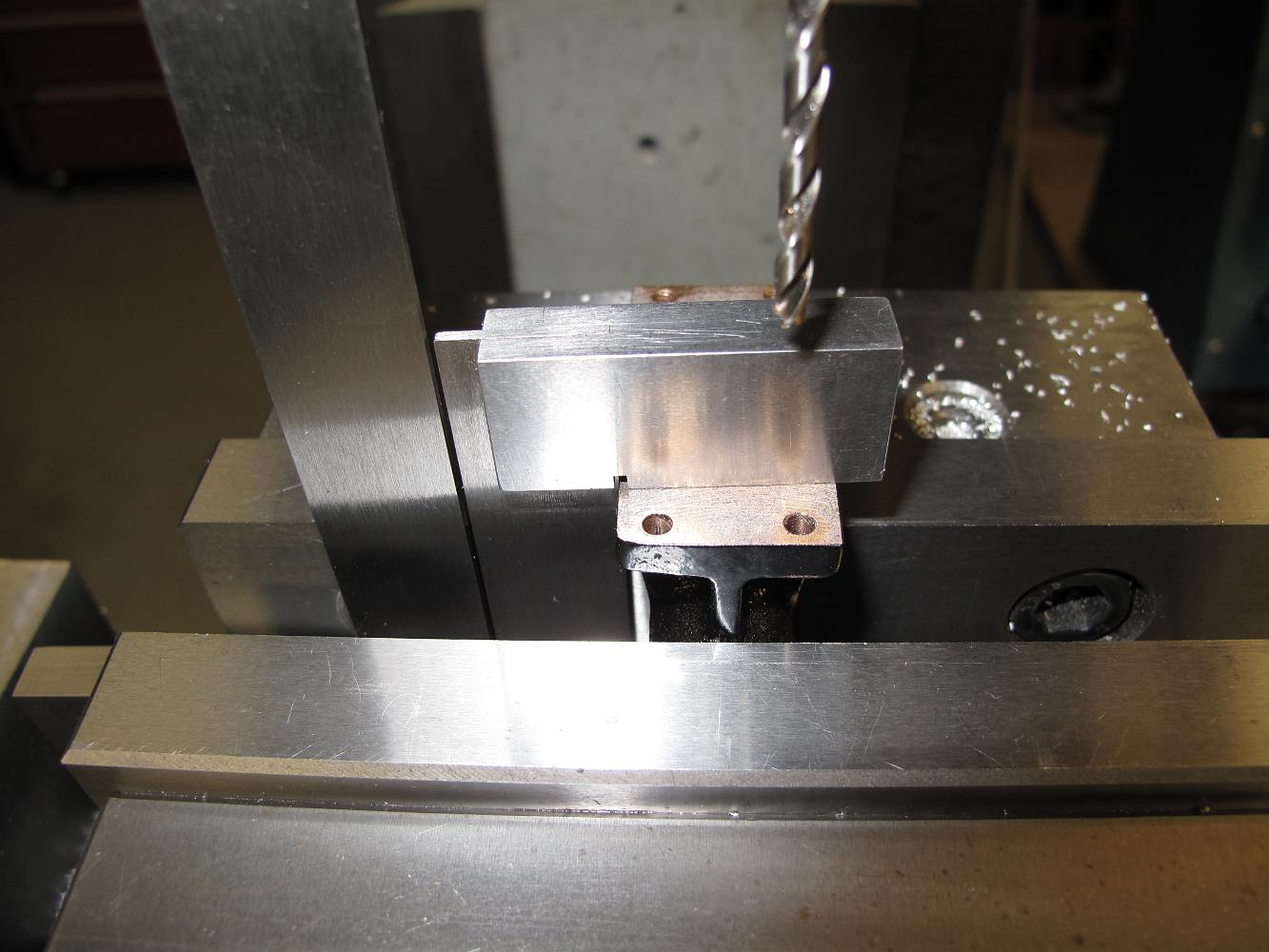

While Bill was working on the bushings, I enlarge the Tumbler Shaft Pillow Block mounting holes by one drill size. With the original close fitting holes the Tumbler shaft would bind, we needed more clearance to 'float' the pillow blocks until the shaft ran smooth when the bolts were tightened. No fancy set up here, just use two squares against each other to set the block level to the table.
