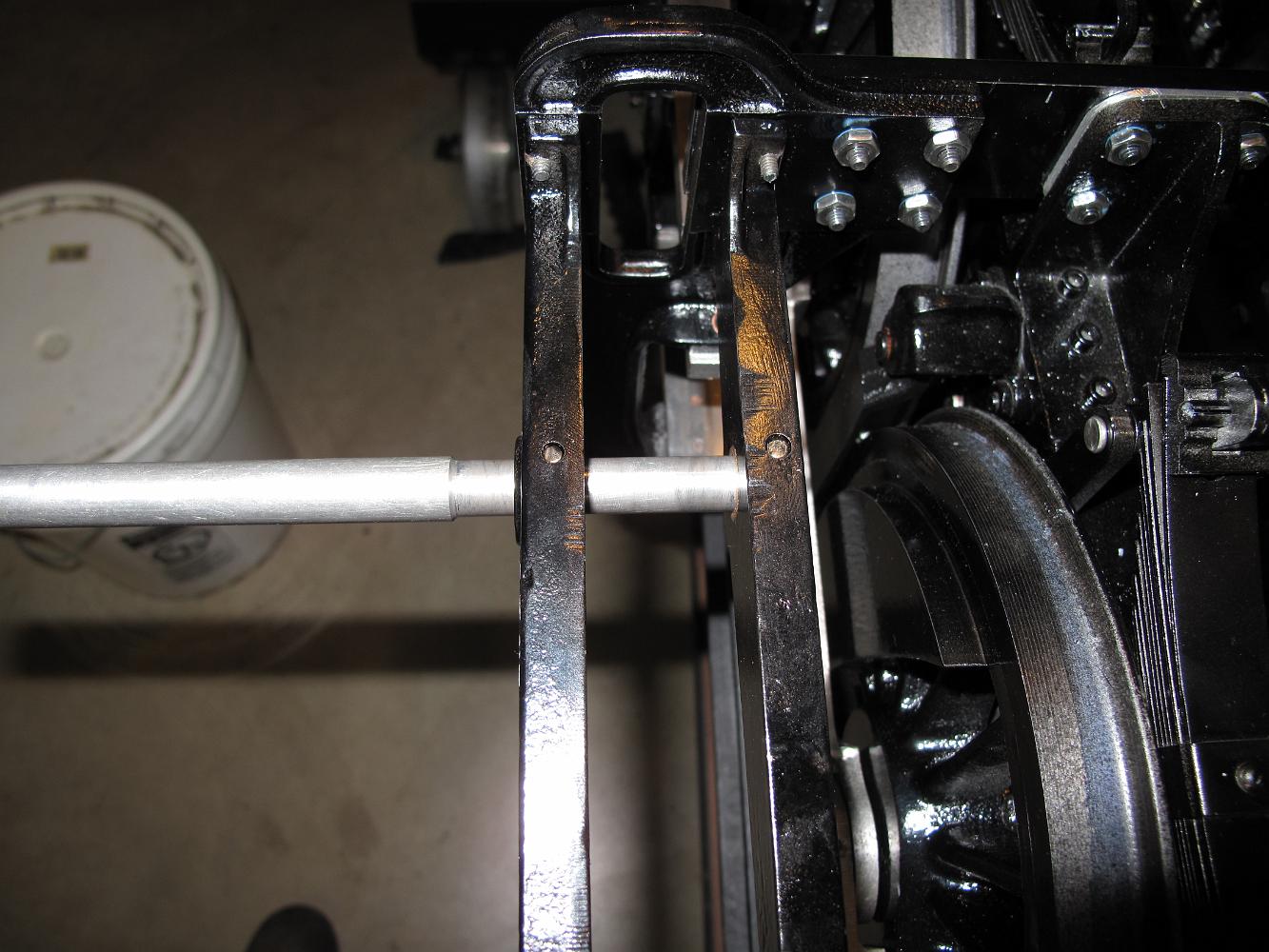

11-Nov-09 Using a piece of aluminum to rough align the Brackets while loosely bolted. Then we tighten the bracket bolts and line-ream the bushings to size and to be in line with each other.
