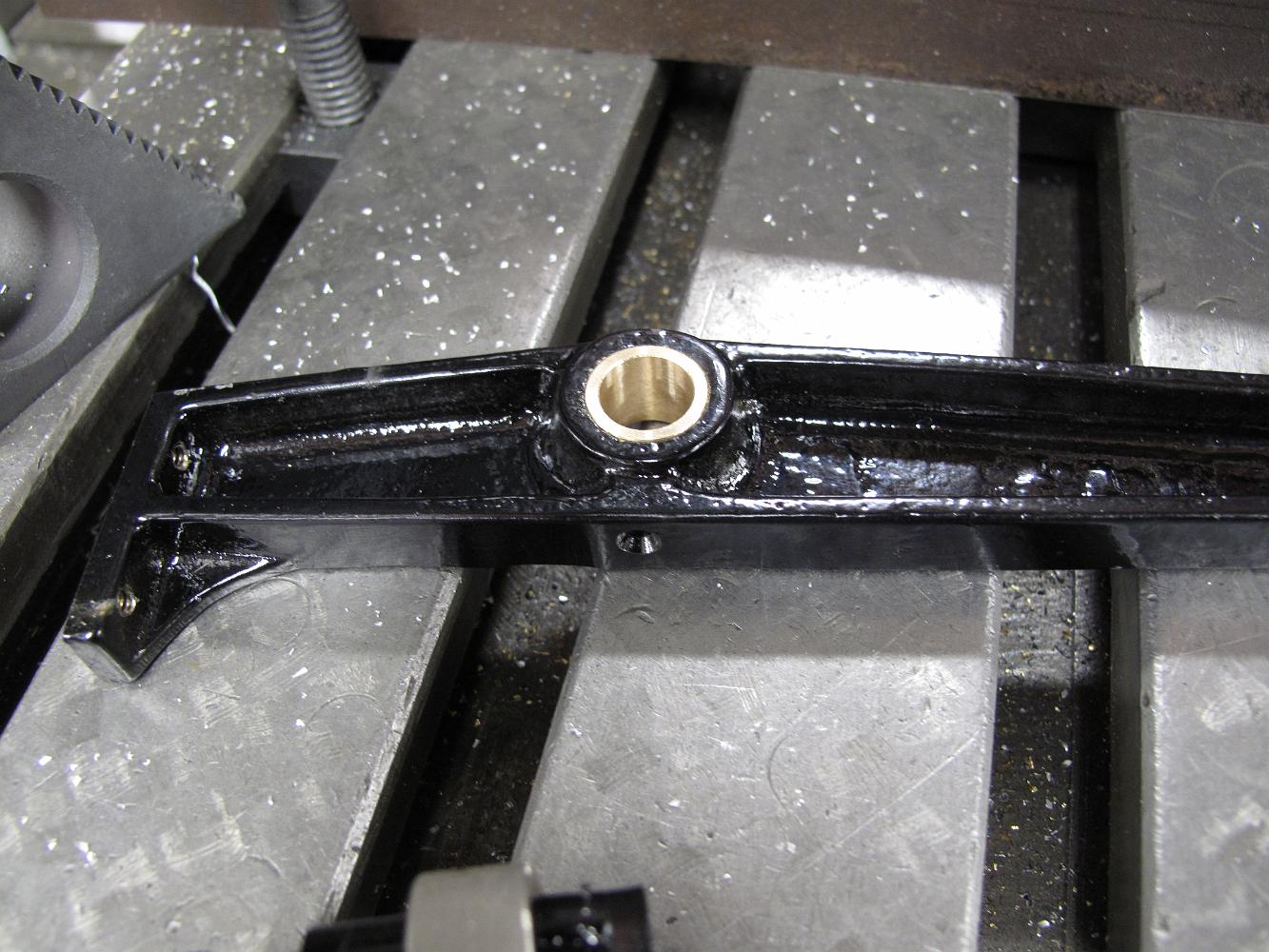

While aligning and reaming the Link Support bushings, yet another bushing broke loose and spun out, so we had to make another new one. We think the Telescoping Bore Gage I have gave a false reading on the bushing hole size, resulting in a too-small bushing the first time.
