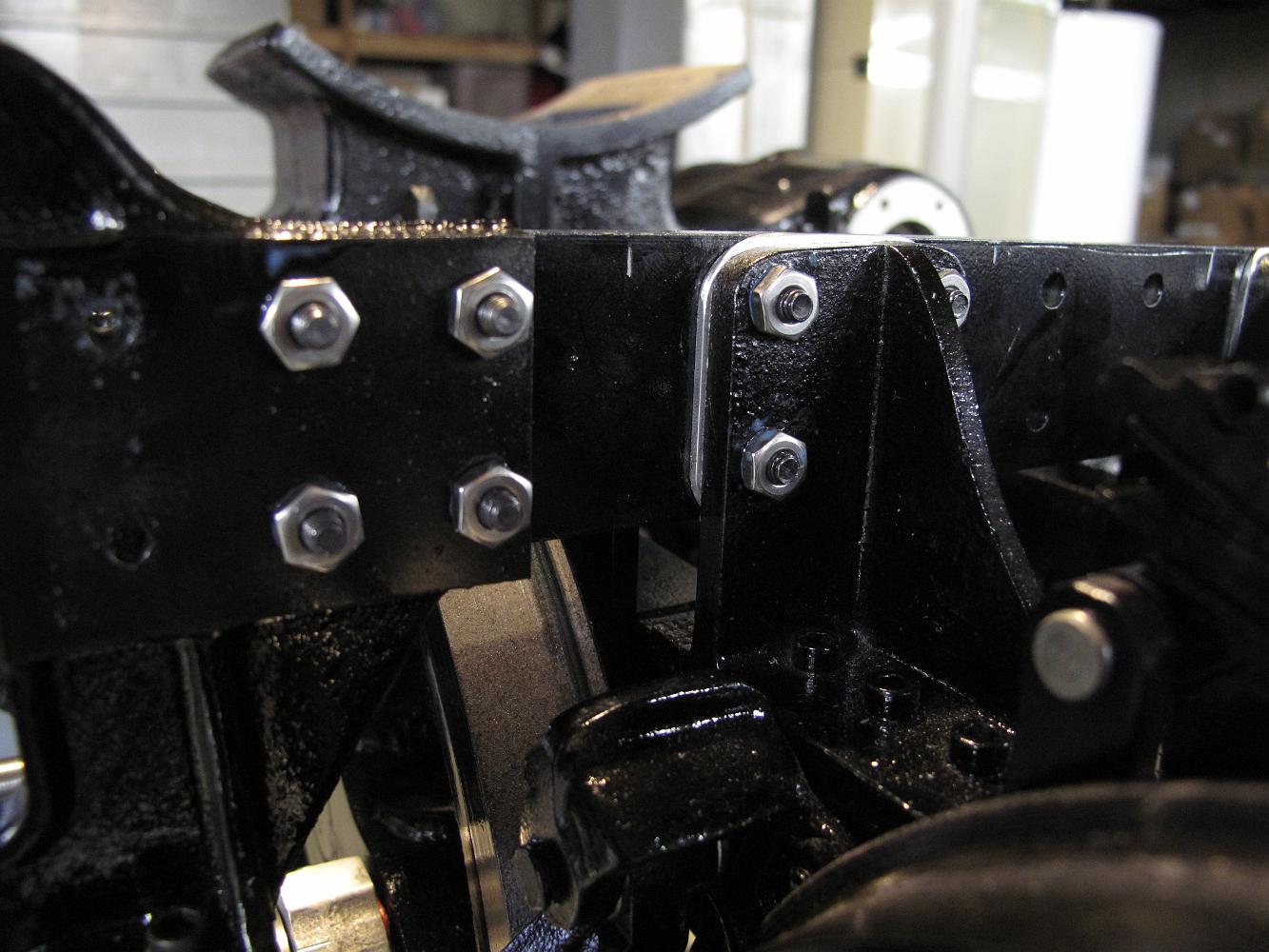

11-Nov Here you can see the outline of the .060 thou aluminum shim we had to put between the link support bracket and link support bars. I'm using socket head cap screws (stronger) instead of scale model bolts mostly because I don't have any #6 model bolts to use.
