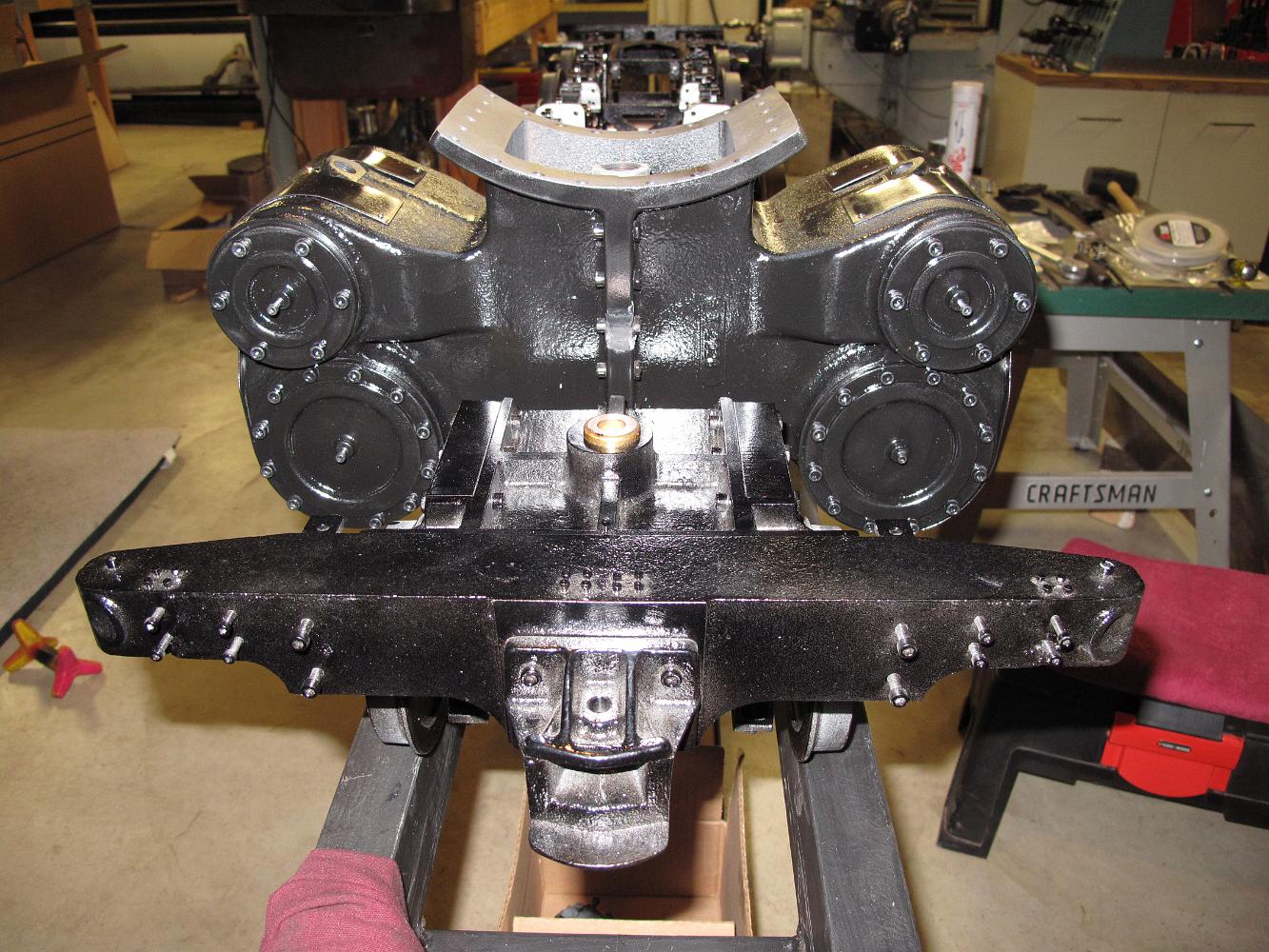

The front of the frame is much heavier now with the cylinders installed. I might have to make some paint adjustments - the frame has Sherwin-williams automotive, the cylinders have Dupont Engine Block high temp and they seem to be a different shade of black to the camera.
