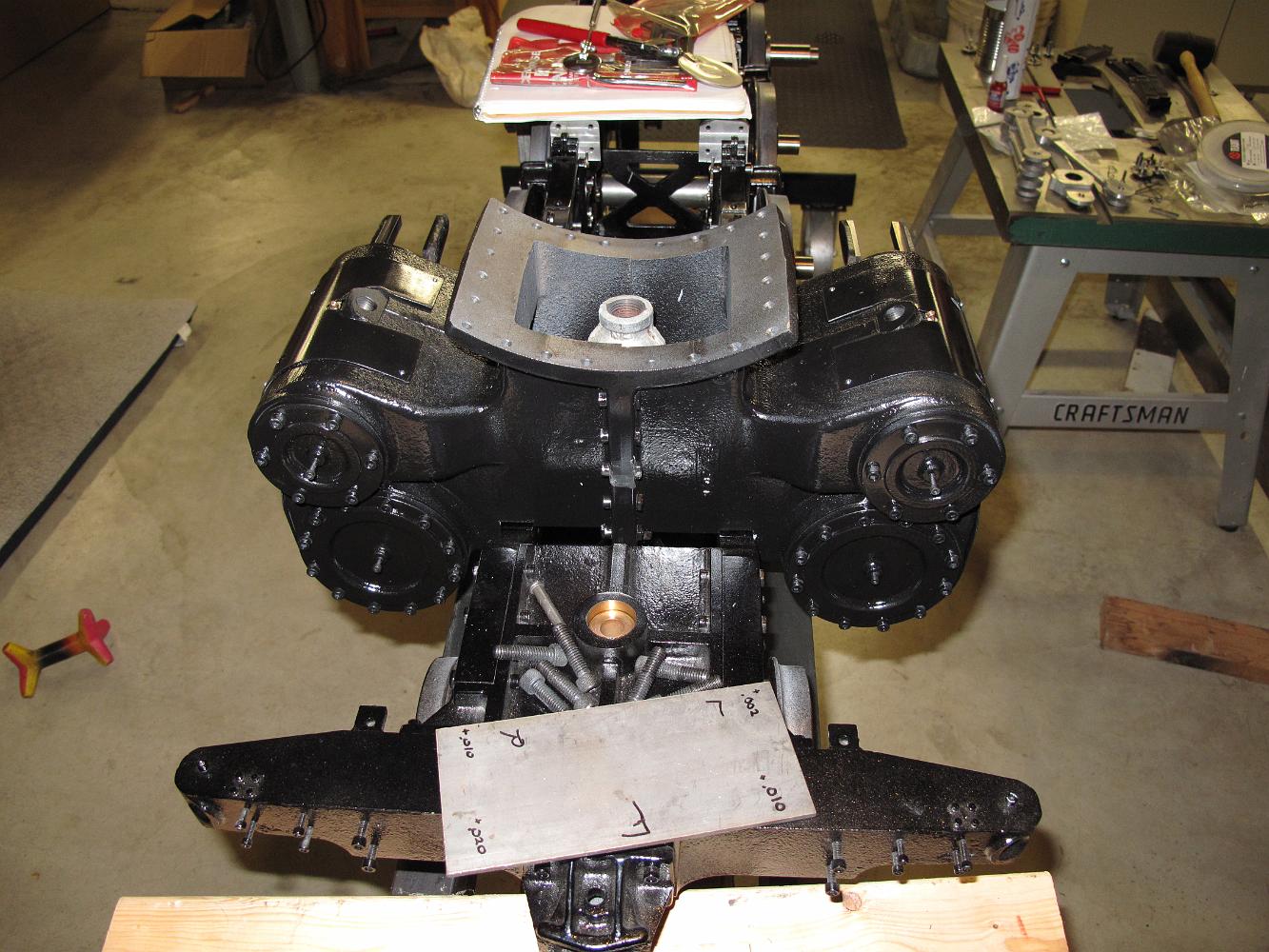

With the cylinder jacketing installed (we used drive rivets to hold it) we begin fitting the cylinders to the frame. We ended up with some height differences on the frame from the print, the shim notes are on the steel plate in front.
