ExhibitPlus NewBrakeHangerSpacers15Jul09 002

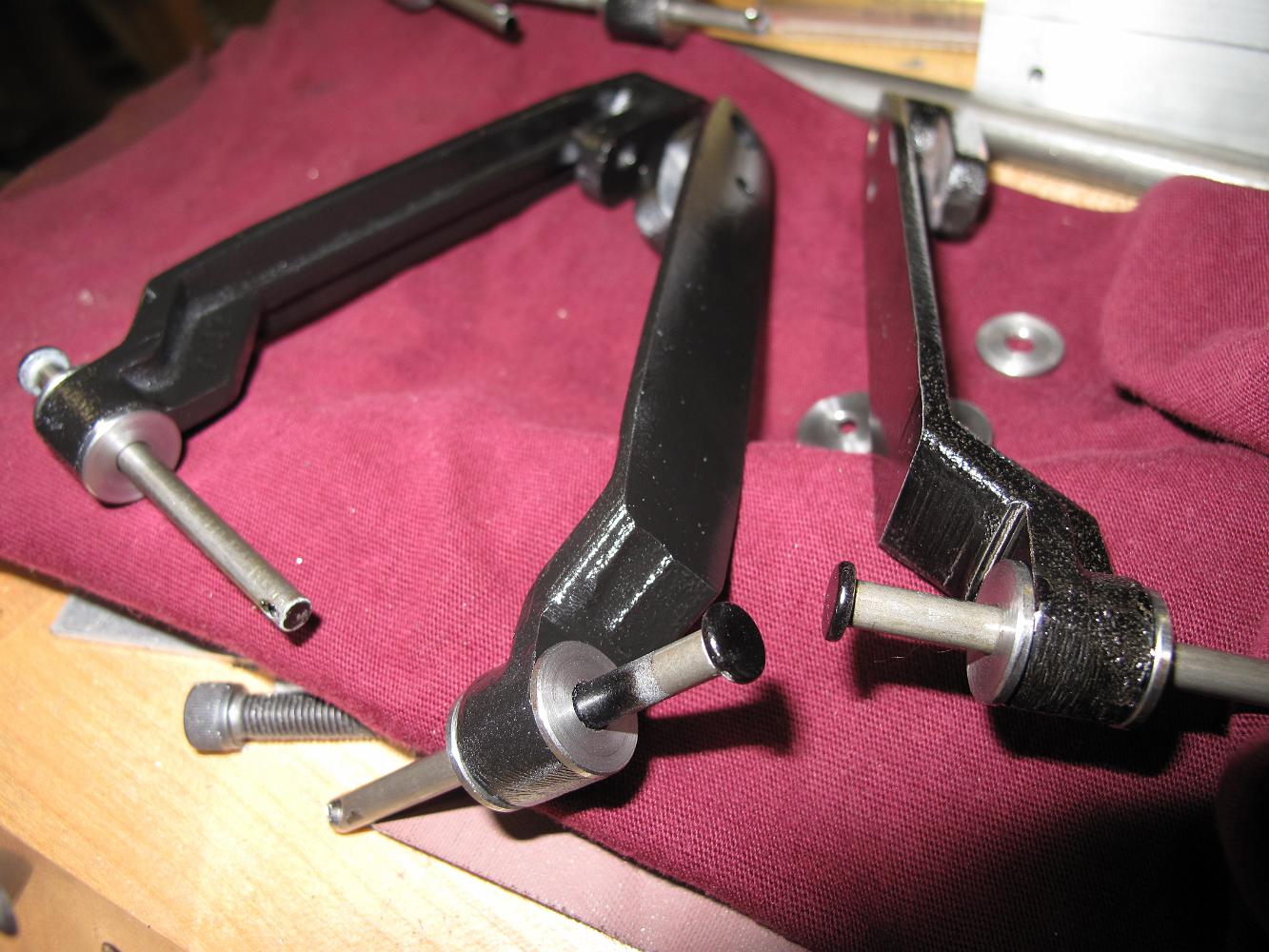

15-July-09 Now with twice a many spacers per bracket to assemble in a space Bill and already have trouble getting our fingers into, holding all these parts without dropping was extremely difficult. Quick solution: Use the pins as alignment guides and with a touch of super glue, adhere the spacers to the bracket. Once assembled, a quick rap of the hammer on the spacer breaks it free.
