ExhibitPlus MachiningLeftSideBrakeHangers24June09 008

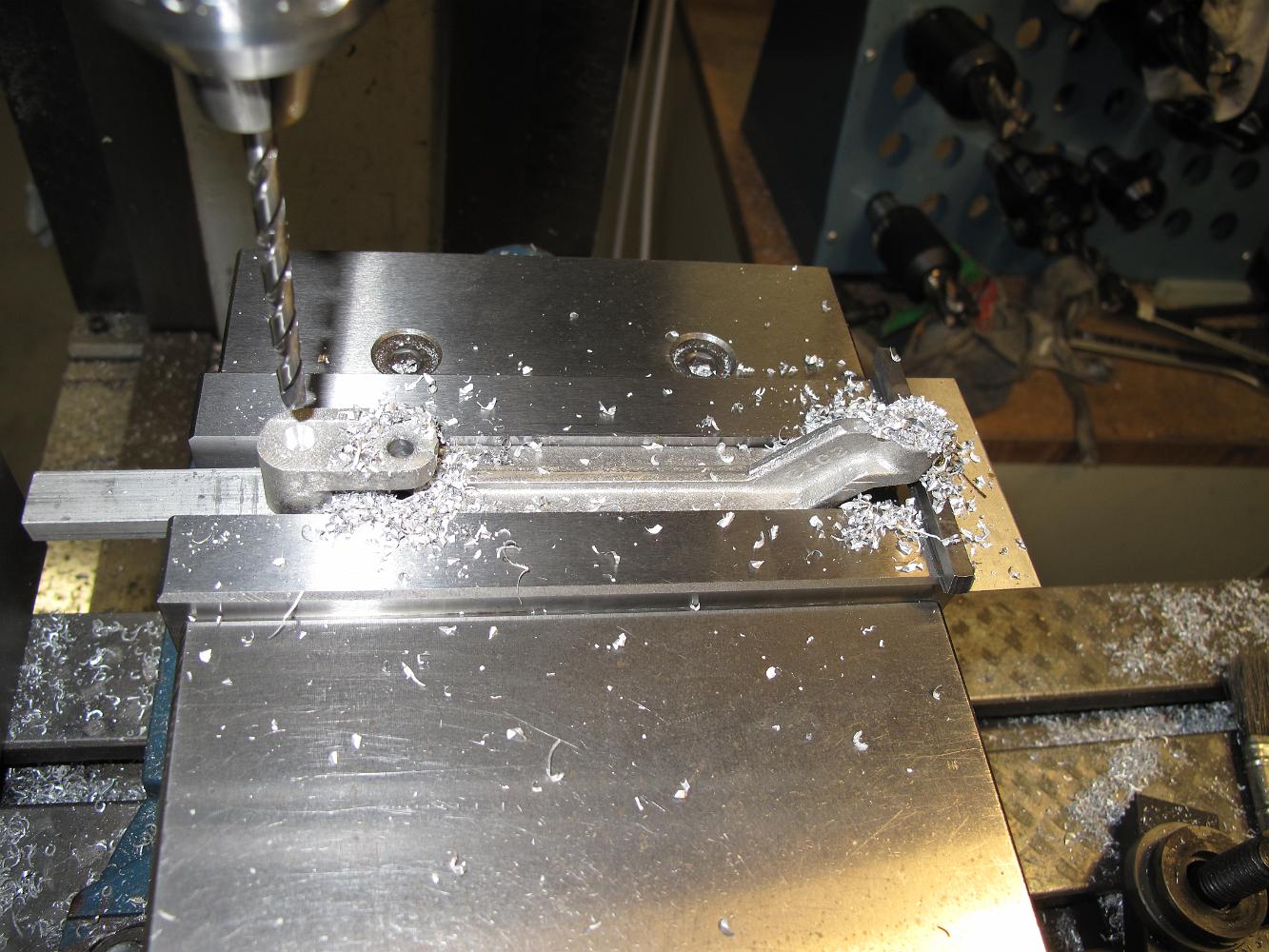

Drilling the holes, with care not to snag any of the unsupported parts and snap them with the drill.
