ExhibitPlus LeftSideBrakeHangerMachining17June09 001

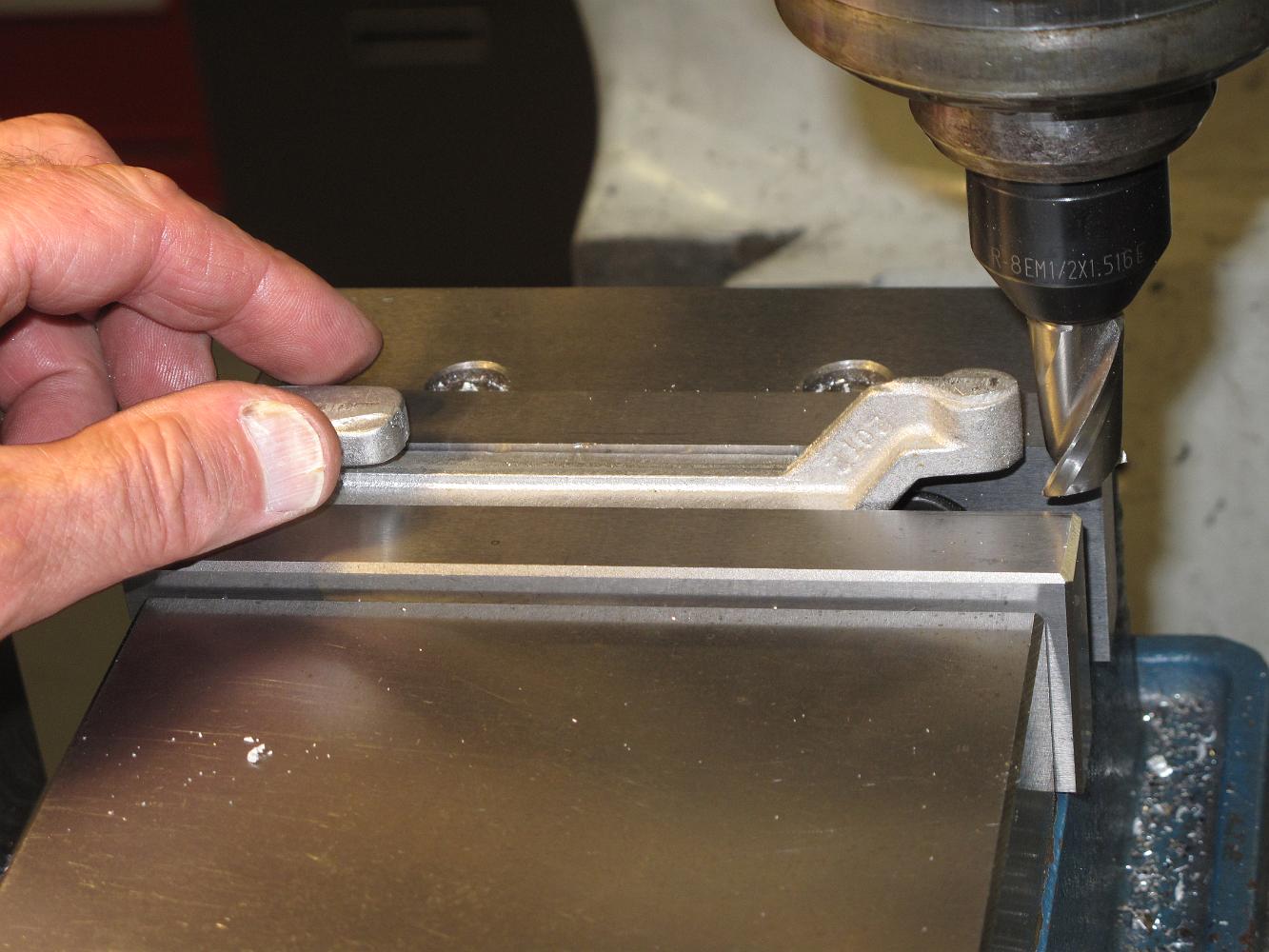

17-June-09 Having received a replacement aluminum brake hanger to replace the broken one, we take a break from the smokebox to finish this section. The supplier has since changed the pattern to use a lost wax and not sand casting, so I picked up this aluminum 'old stock' casting.
