ExhibitPlus GrindingACustomLatheTool20Feb08 006

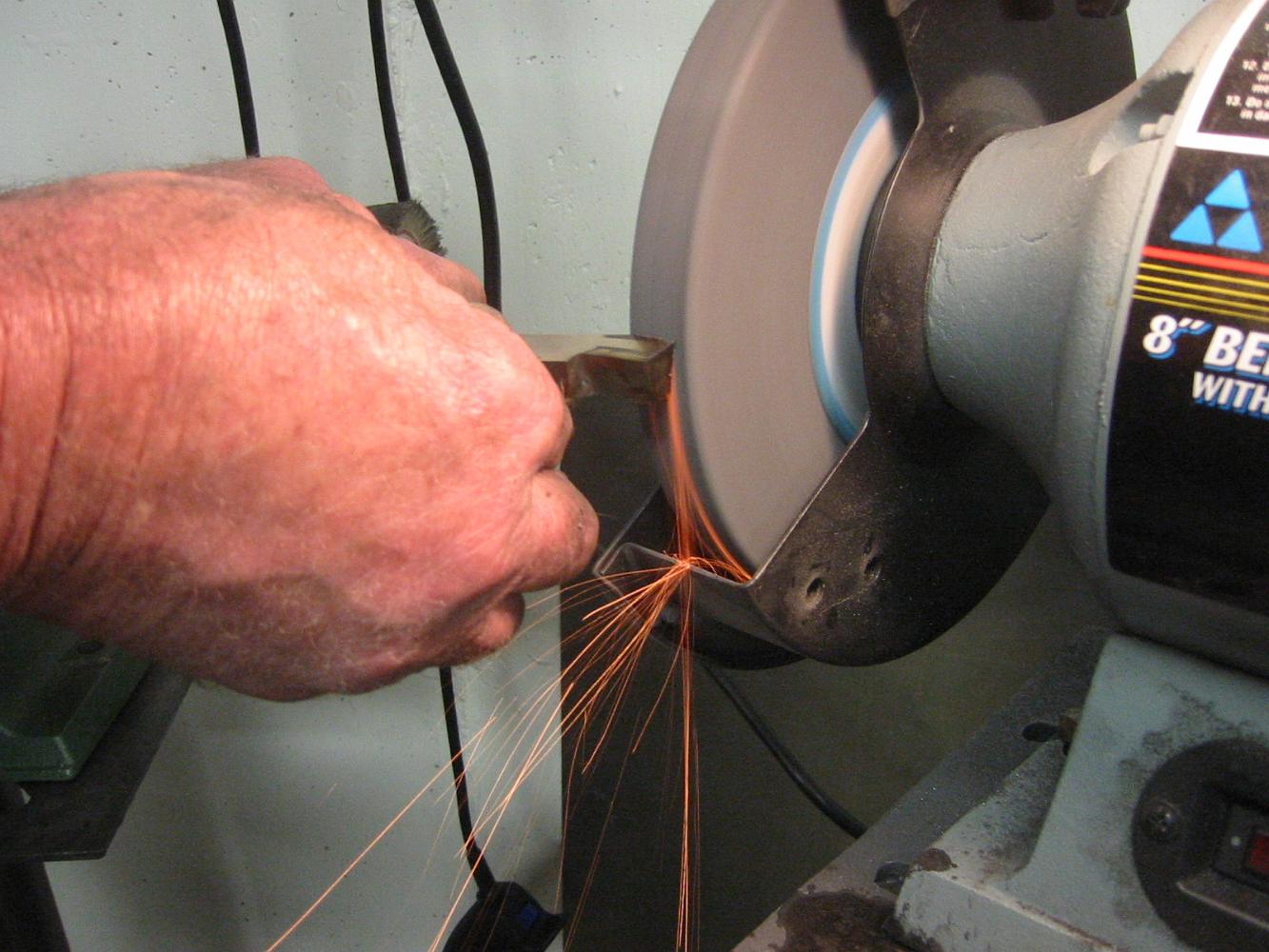

With the inside and front ground, a lot of grinding remains to narrow the tool to a width of .250. The bucket of water is nearby, and we spend an hour grinding the tool blank to the shape we want. And we only took one short break to view the lunar eclipse of the moon that occurred tonight.
