ExhibitPlus FinishingBrakeBeams1Sep08 004

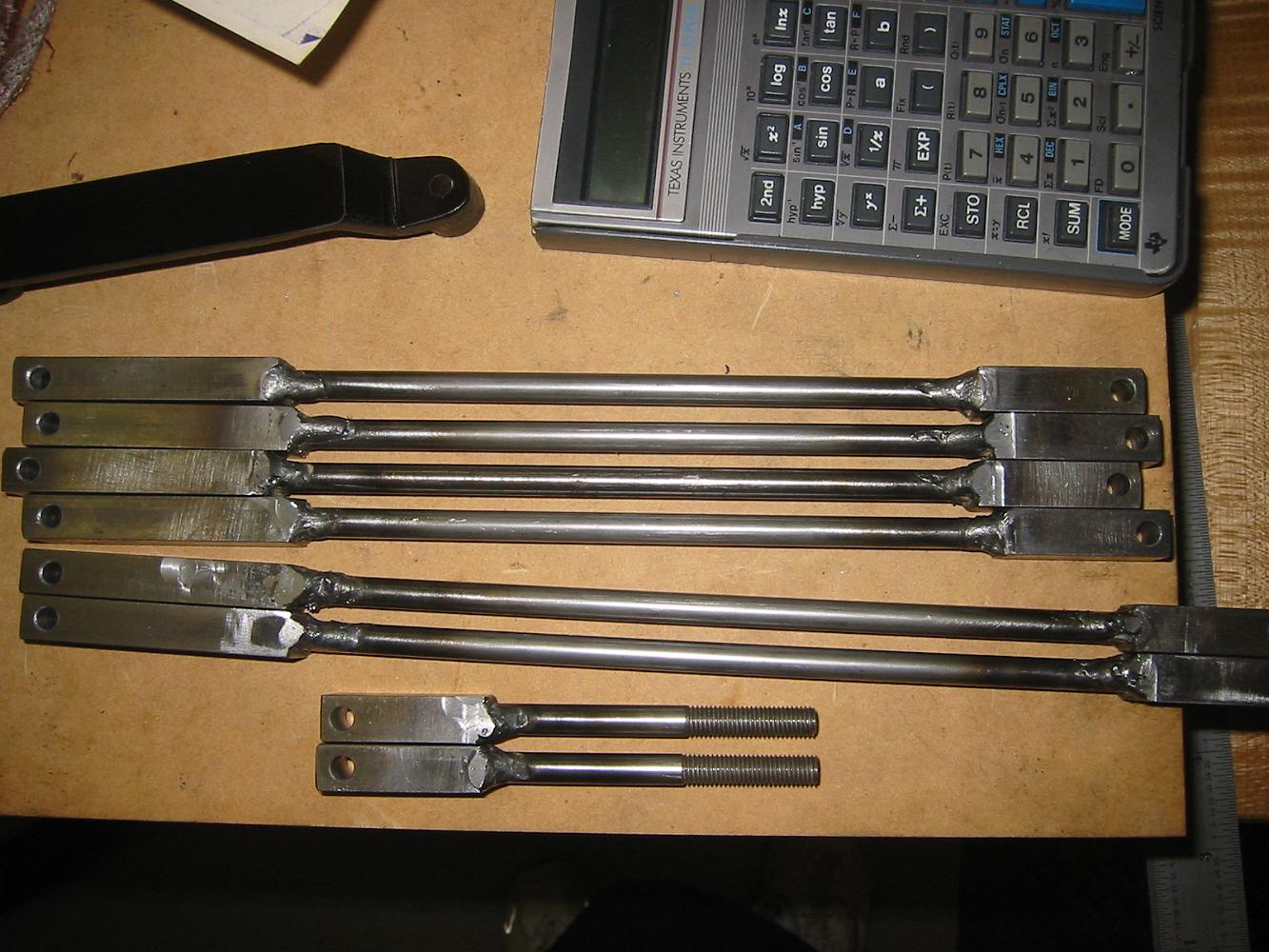

1-Sept-08 After welding the brake rods at my friend Tim's with his MIG welder, I have cleaned up the welds and drilled the connecting pin holes.
