ExhibitPlus FinishingBrakeBeams1Sep08 003

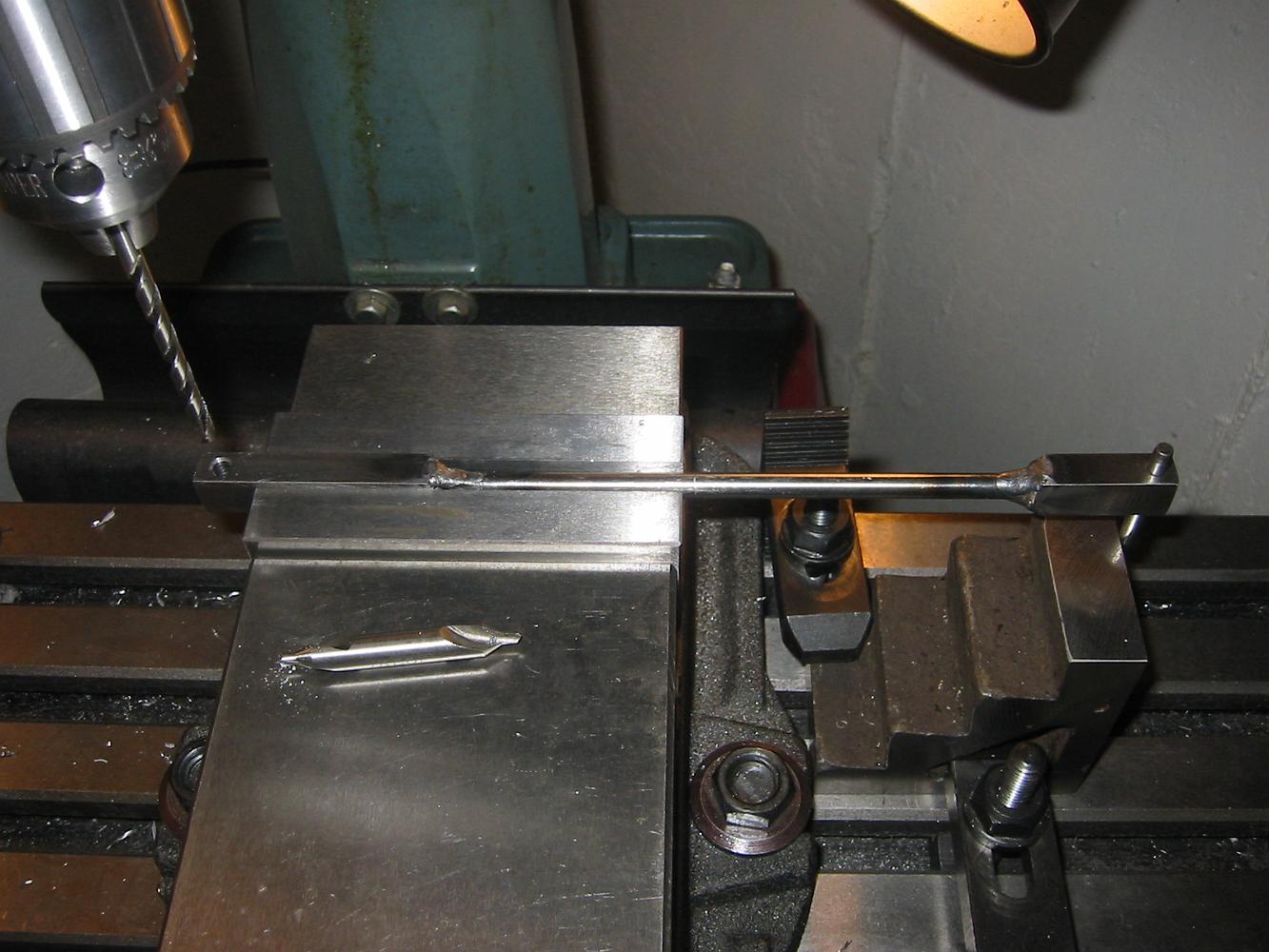

Since the big Bridgeport mill was in use with a rotary table setup, I use the little Rong-Fu mill. Needing to drill a hole 9 and 29/32 inches away, but not wanting to hand crank the table each time counting the dial (no DRO), I set up a stop and drill the holes. What a pain working with a small table is! After getting it all set up I had to break the whole thing down again and slide it over because I did not have enought travel in the table to indicate the pin on the right.
