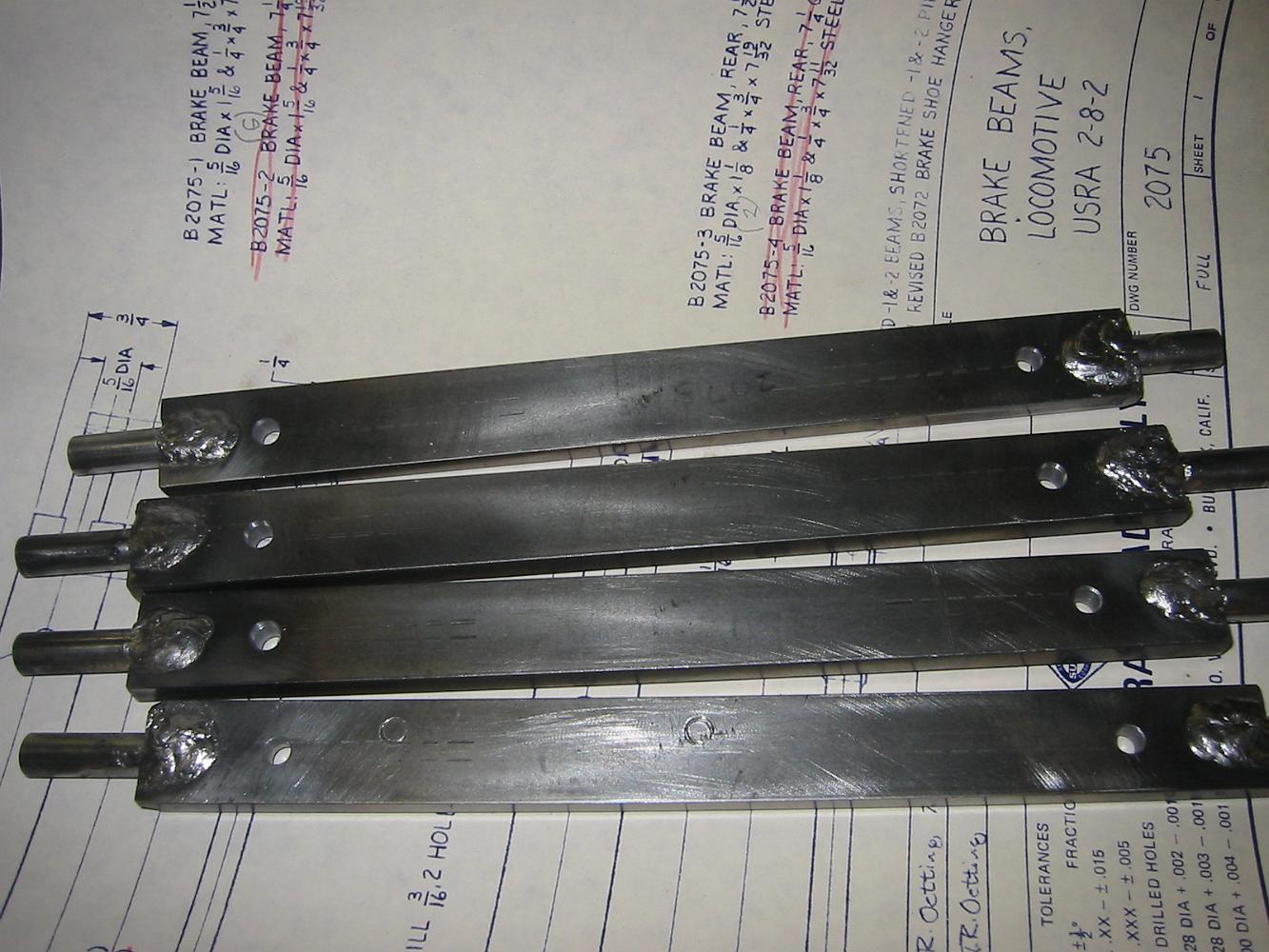

After welding the pins into the ends of the beams with my friend Tim's MIG welder, I finish machining them to size and drill the pin holes in them.
