ExhibitPlus EngineBrakes30Jan08 002

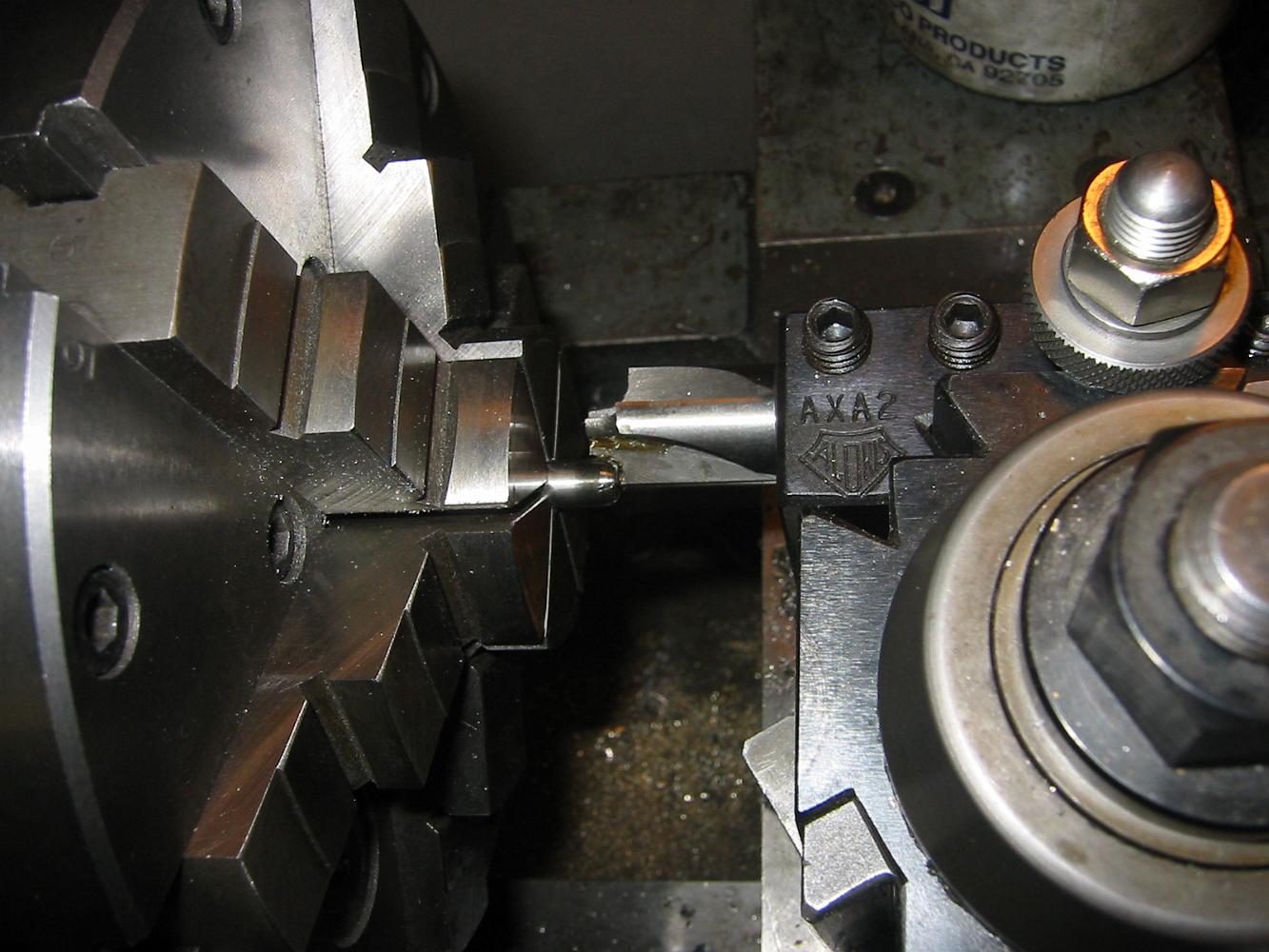

Need to turn a 1/4" radius on the end of a rod? Here's a tip: Put a rounding bit in the holder, run the lathe in reverse and advance the carriage. Much better than any free-hand grinder job I can do!
