ExhibitPlus EngineBrakes30Jan08 001

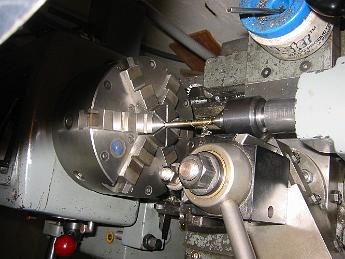

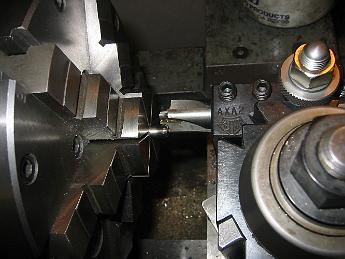

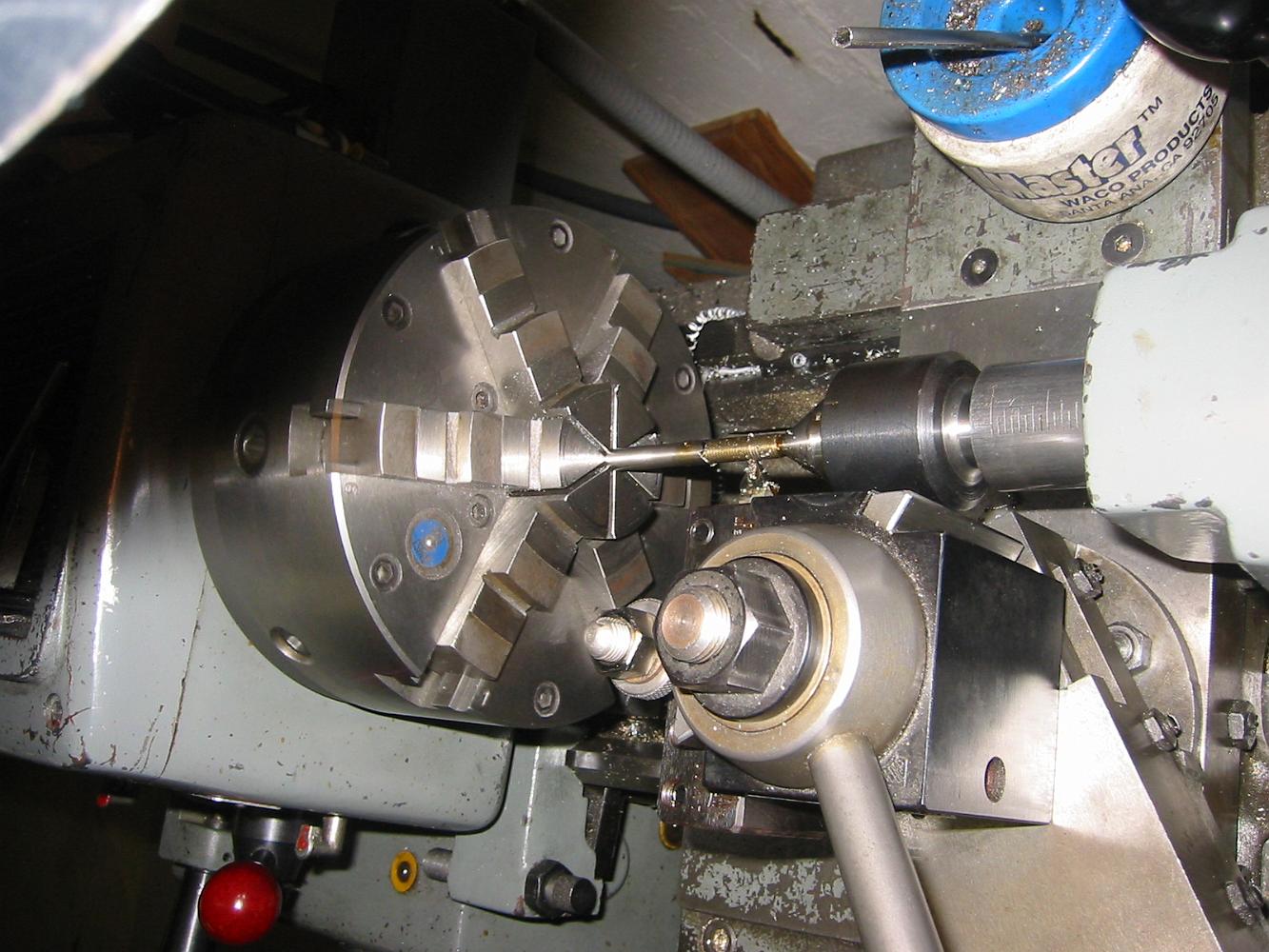

30-Jan-08 Well, this picture is a really odd perspective, but I couldn't move the camera closer since Bill was in the middle of threading the stainless steel brake actuator arm. I learned he only takes a few 'thou every pass when threading. And a nice, sharp cutter also helps. The 1/4-28 threads look nice.
