ExhibitPlus EngineBrakes23Jan08 002

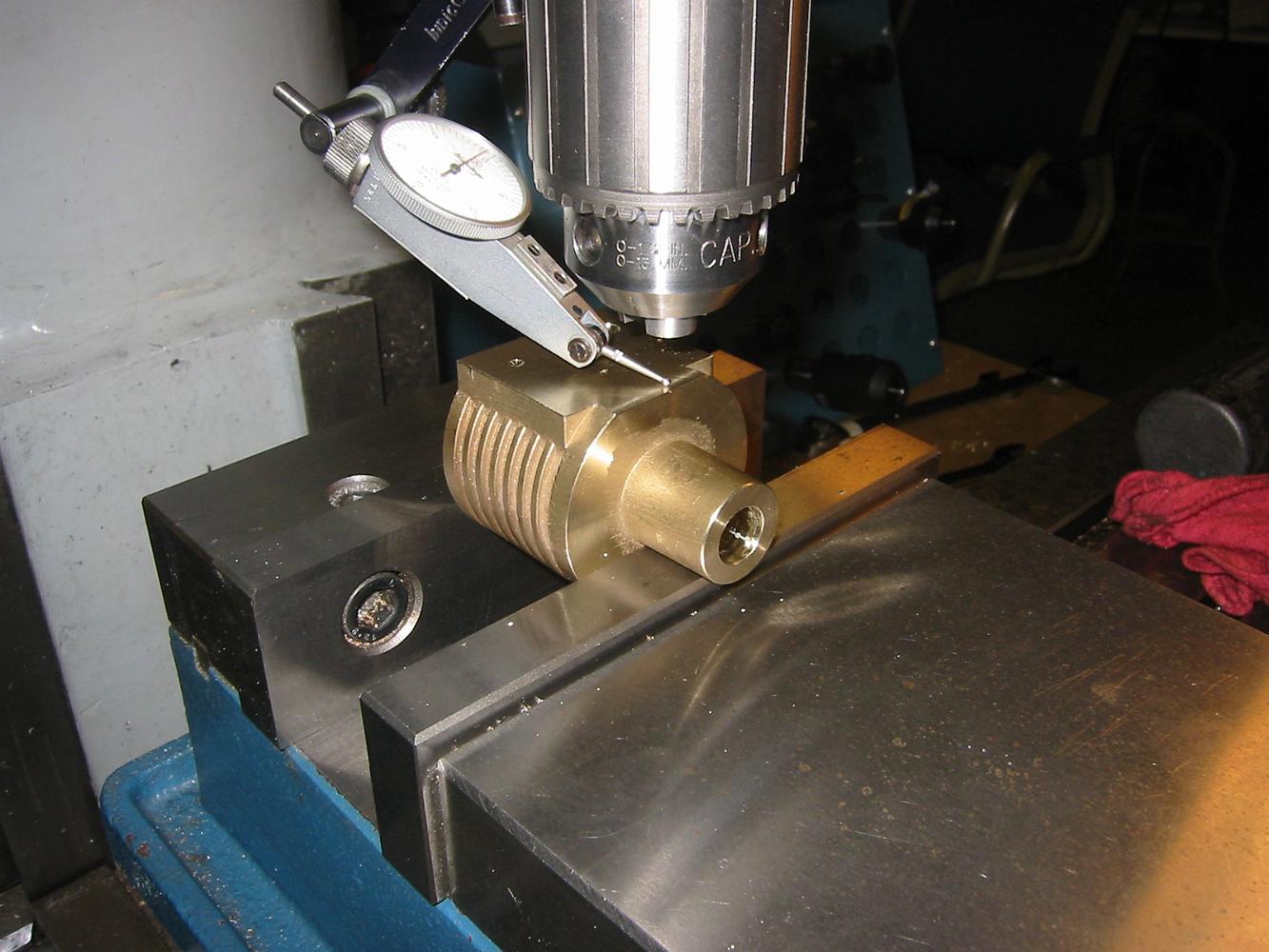

After seeing the angle-plate set up, you may wonder why the cylinder is in the vise. After finishing the mounting boss, we started drilling the four mounting holes only to have it shift. So here we are indicating the boss insuring it is square in the vise so we can finish drilling and tapping the mounting holes.
