ExhibitPlus EngineBrakeShoesContinued27Feb08 007

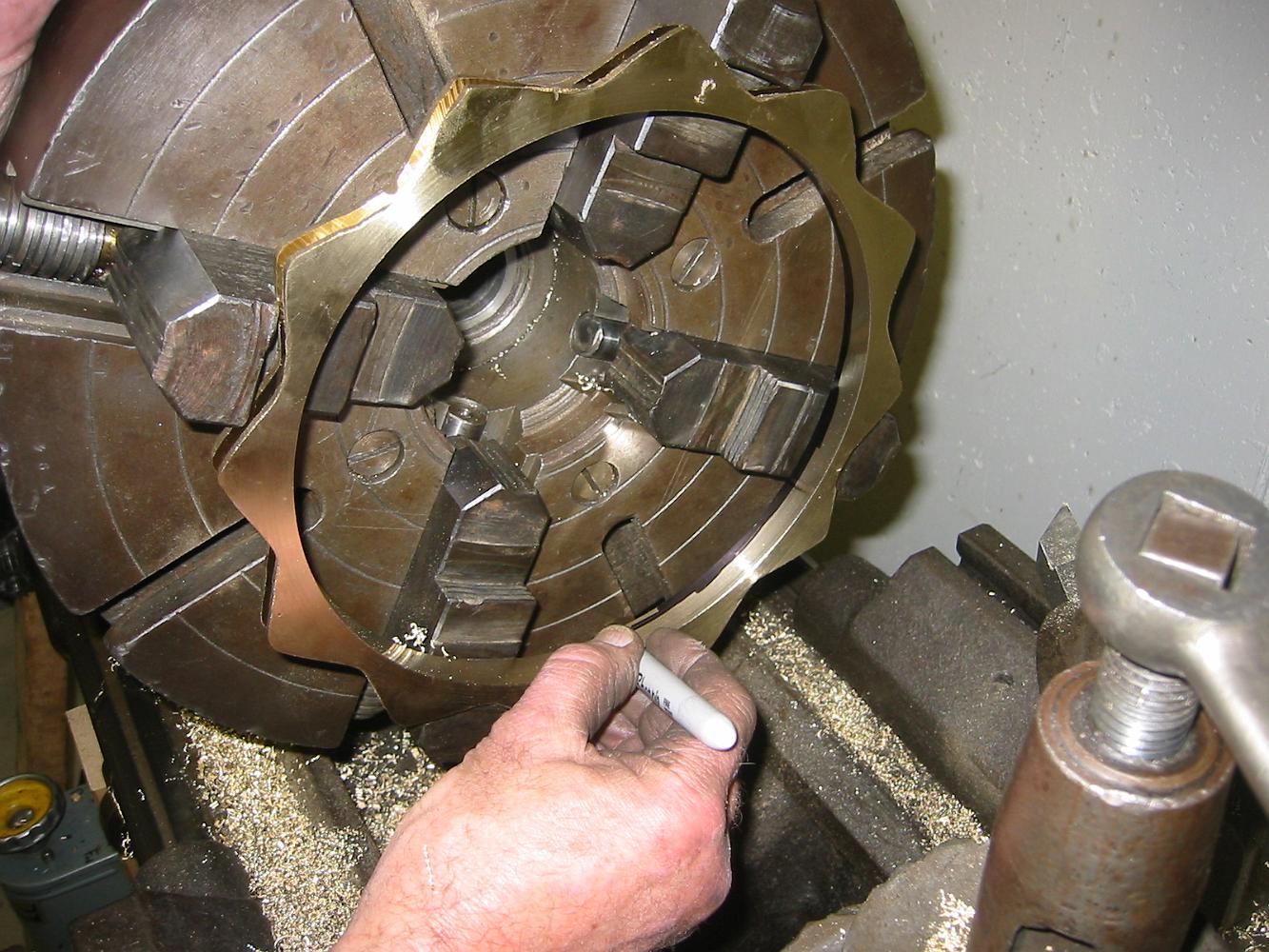

Shop Tip: How do you know when you are at the finished diameter on a taper? We previously bored the diameter to the smallest portion of the taper, so by marking it with a black marker, we progressively removed more and more until we were just barely cutting the black away.
