ExhibitPlus EngineBrakeShoesContinued27Feb08 004

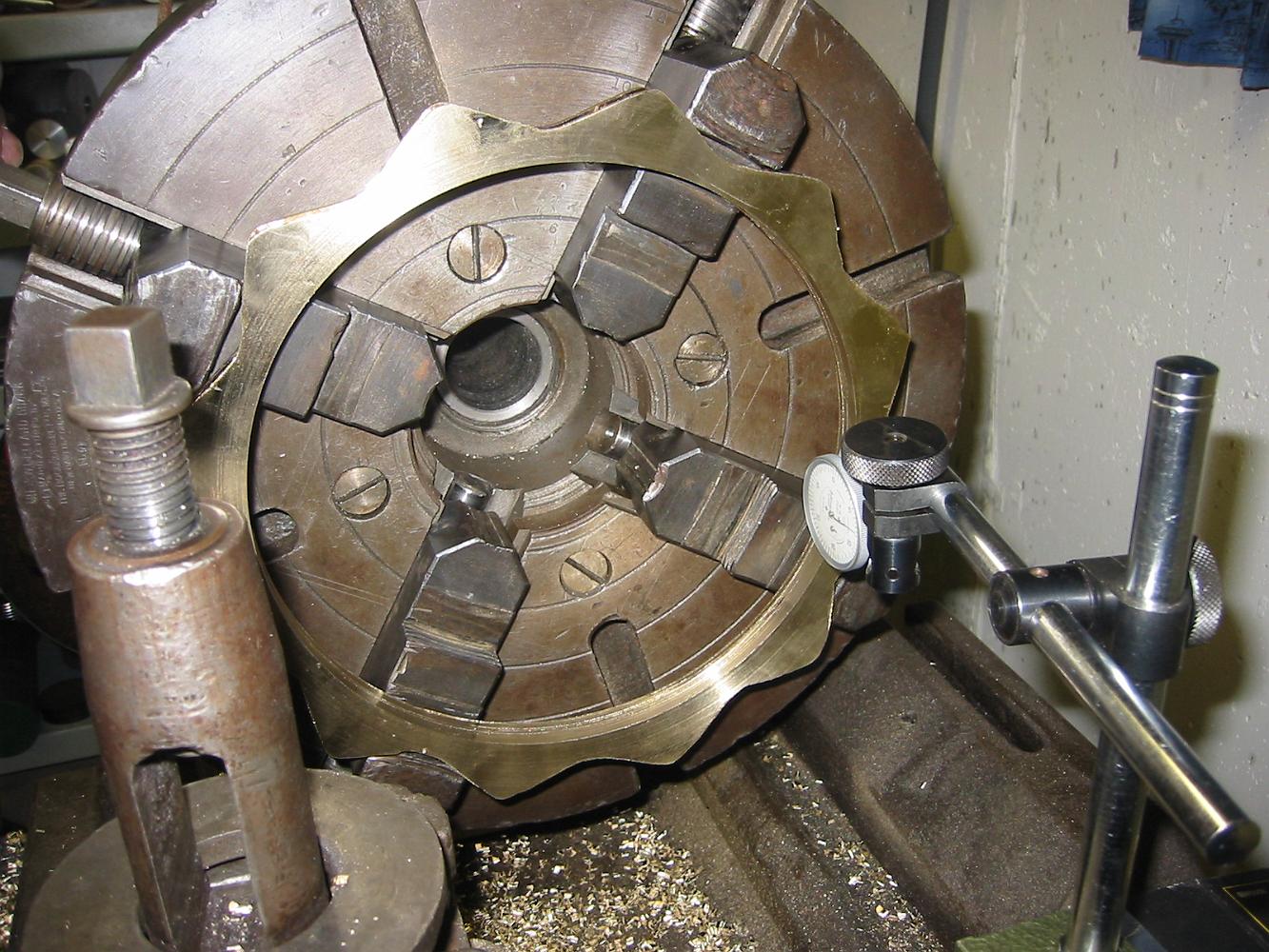

27-Feb-08 With the outside grove successfuly cut using the 1/8" cutoff tool, we re-chuck the ring on the outside to turn the taper to match the wheel tread profile. Here we are doing our best to center the ring, which is a hassle because the ring is oval from the previous chuckings, and the 95 year old chuck is very worn causing uneven holding on the casting.
