ExhibitPlus EngineBrakeShoesContinued27Feb08 001

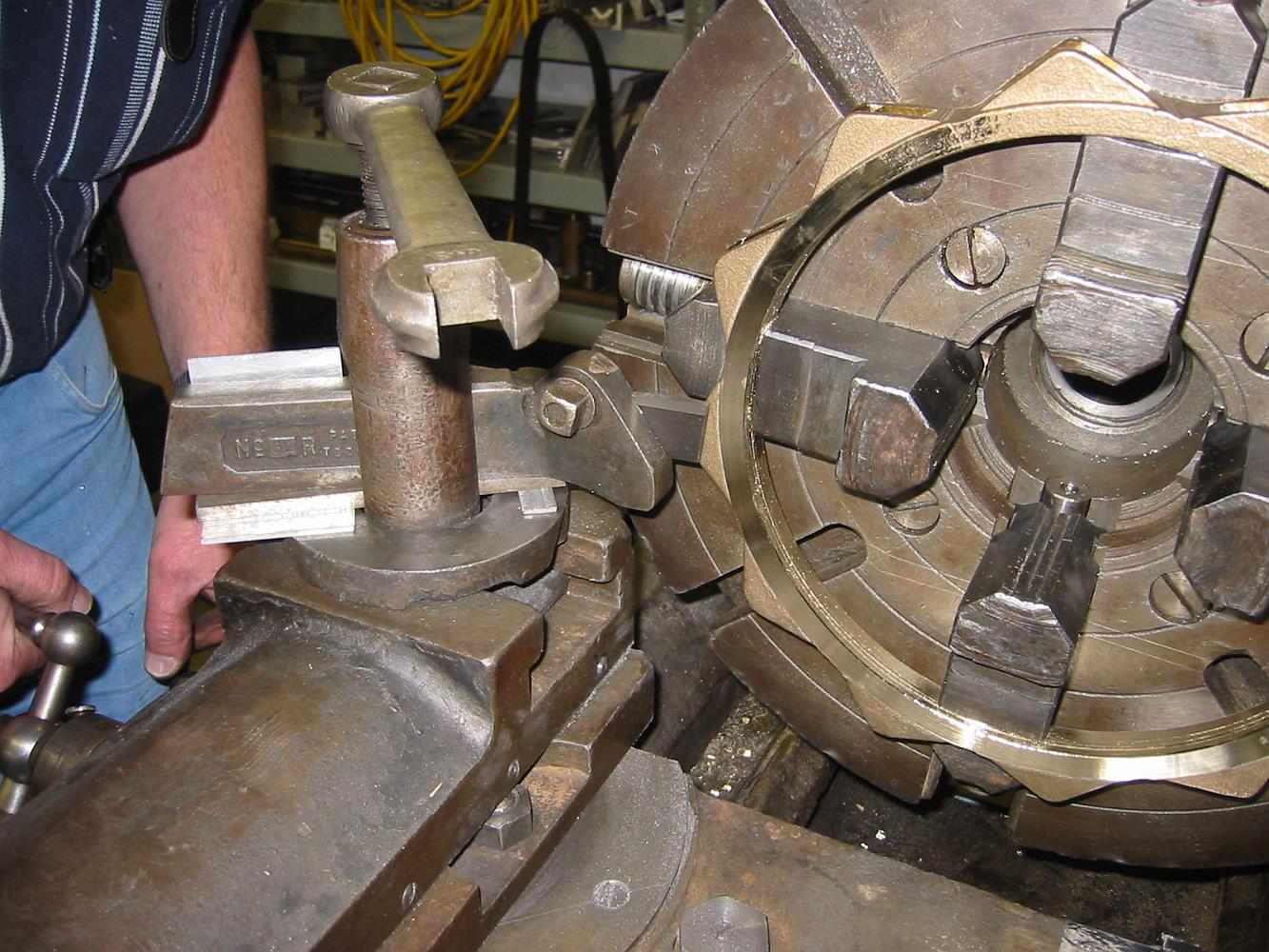

27-Feb-08 After having so much trouble with the custom-ground 1/4" wide square-nose tool, we change our method of attack. Searching through the misc. tool, we find a cutoff blade almost the right size for the holder. A little grinding to fit it to size and we try it again. The cutoff tool is 1/8" wide. Here Bill is squaring it up against the machined face of the brake shoe ring.
