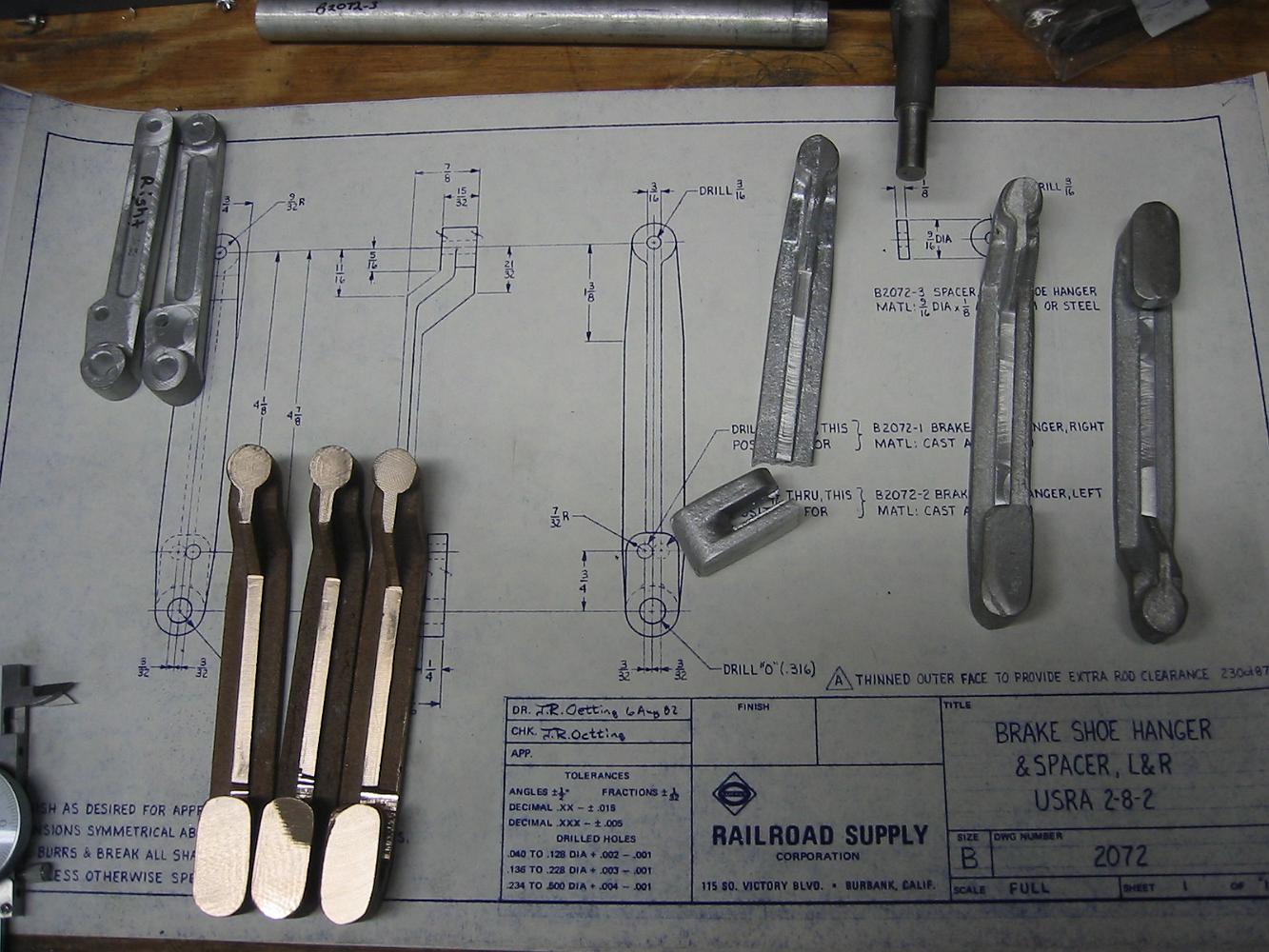

The rear brake hangers in the upper left are finished, the rest are partly machined. And one got broke during one machining operation. Not everything goes to plan. If my supplier will co-operate, I'll get a replacement, otherwise I will have to pay a welder to join the two aluminum pieces back together.
