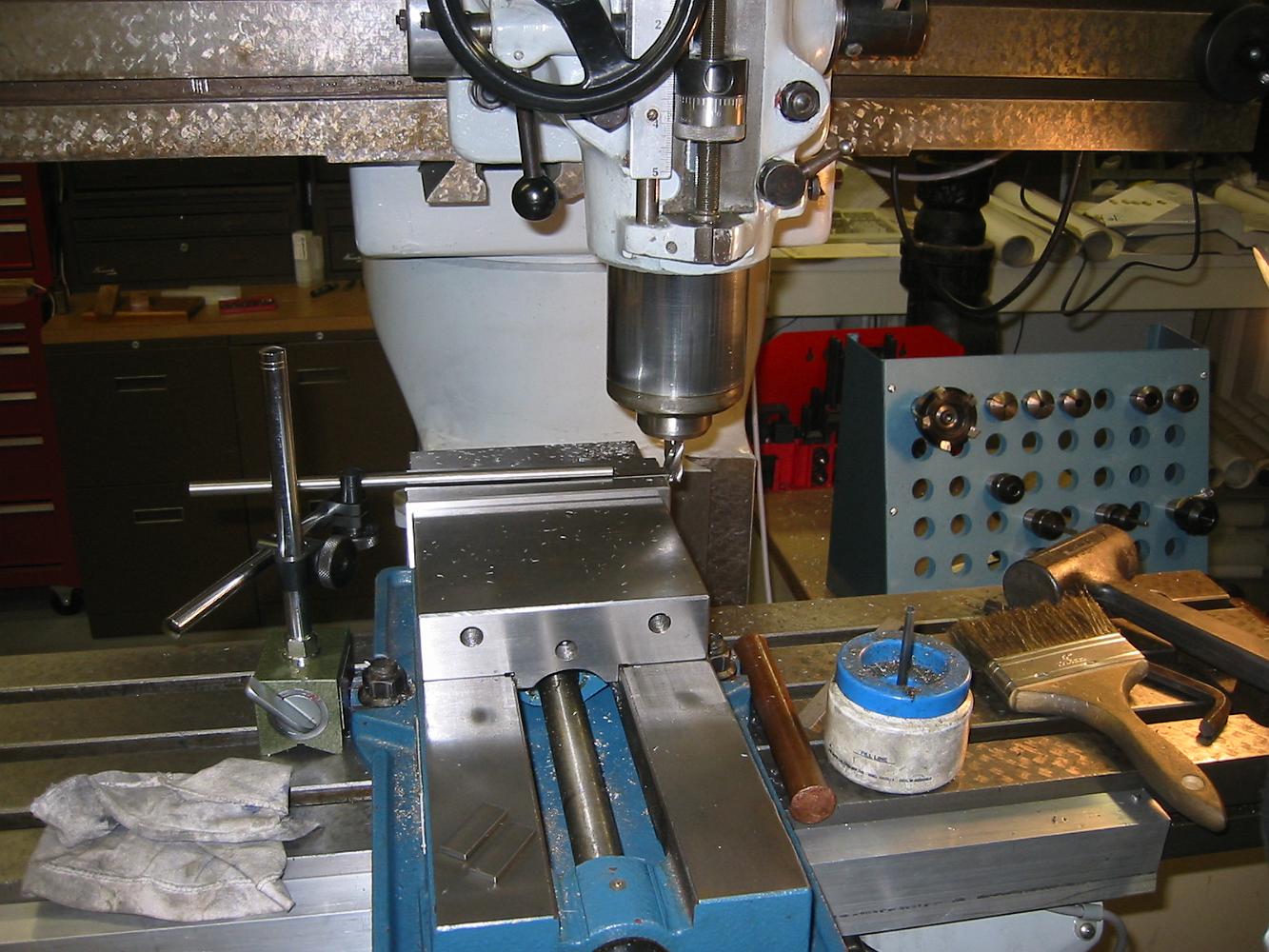

13-Feb-08 The vise stop is set up for 'mass producing' the 12 Brake Beam Links. Step one is to trim them to length.
