ExhibitPlus EngineBrakeBeamParts6Feb08 001

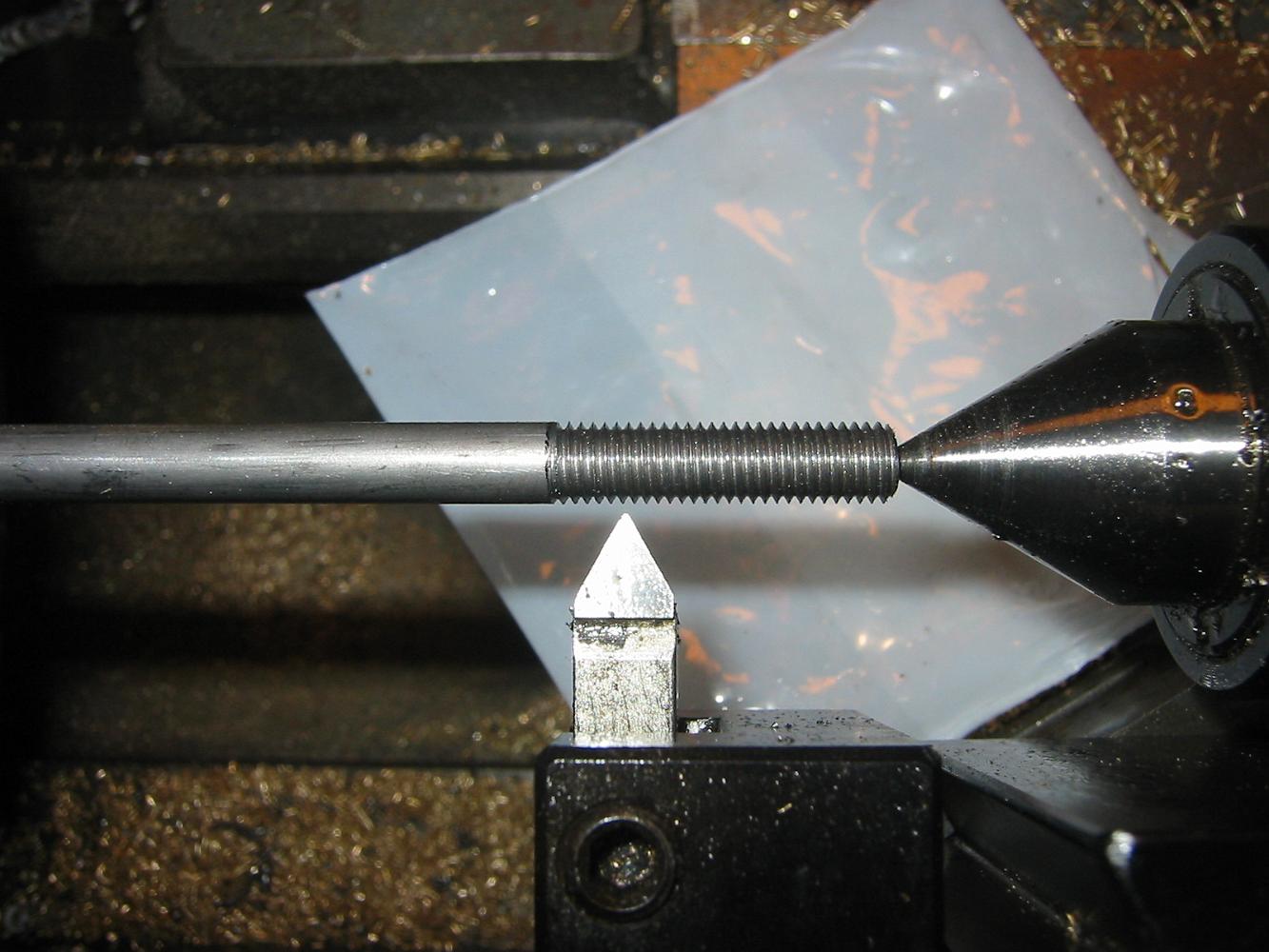

6-Feb-08 Single-point threading a 1/4-28 connecting brake rod. Except the first piece I threaded was 5/16" rod. The 5/16-28 thread turned out nice, but is not was the print called for!
