ExhibitPlus BrakeCylinder16Jan08 003

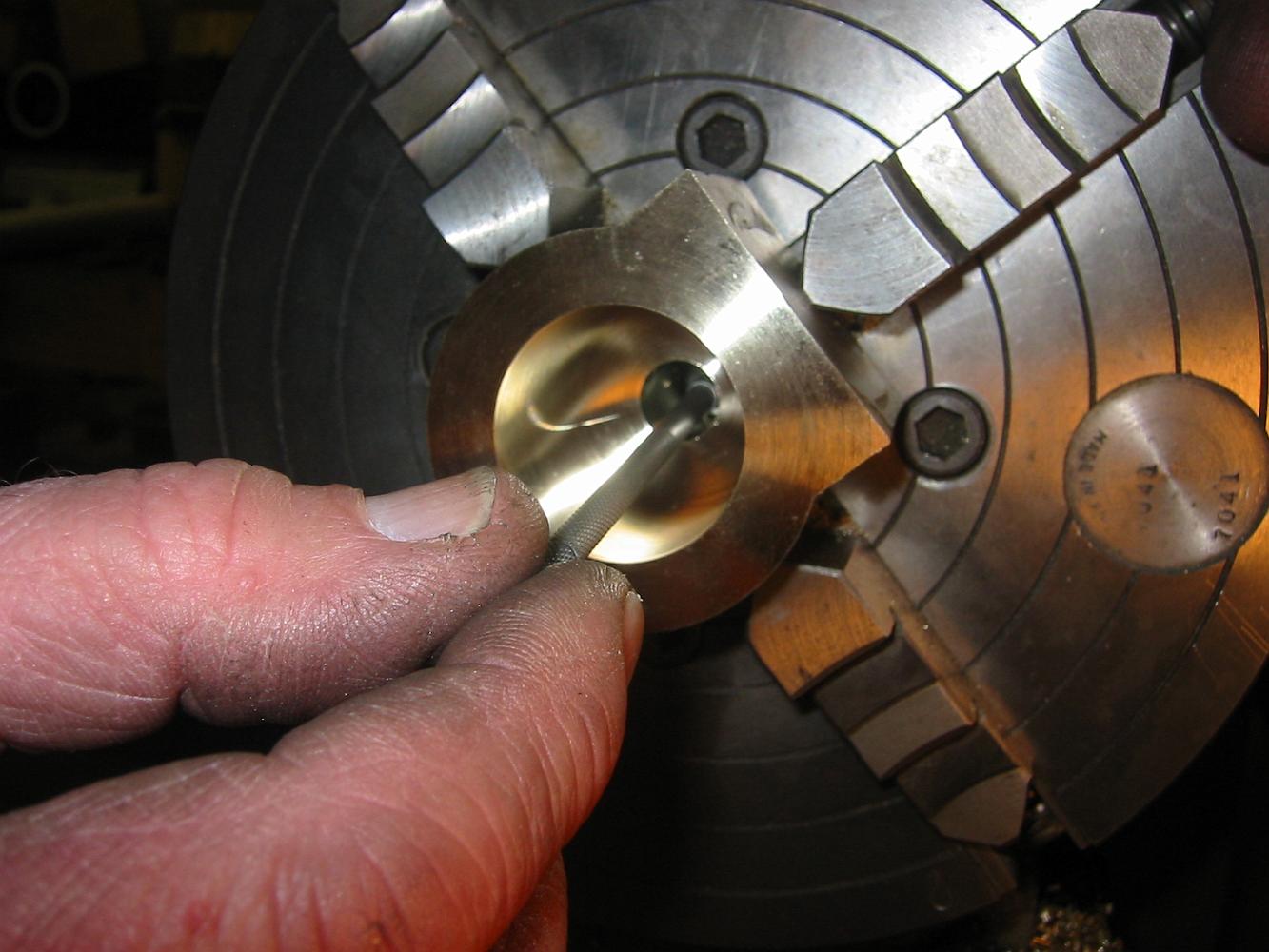

After boring the cylinder to finished size, we drill and bore the guide cylinder at the bottom. measuring the diameter is tricky since the bore is at the bottom of the 2" cylinder and we don't want to remove the part from the chuck until we are finished with it.
